Square basins for fish breeding SDK ST
Square basins for fish breeding SDK ST are practical tanks designed for professional fish breeding, fish holding and daily fish handling in fish farms, hatcheries and aquaculture facilities.
The basins can be produced in many sizes and configurations. This makes it possible to adapt the tank to the working place, fish species, handling method, outflow system and available space in the facility.
SDK ST basins are designed for everyday use. They can be made with specially profiled corners, which help reduce dirt accumulation in the corners of the basin and make cleaning easier.
Main advantages of SDK ST square basins
- square shape that makes it easier to arrange basins in the facility,
- profiled corners reducing dirt accumulation,
- possibility to produce the basin on stainless steel legs,
- possibility to produce the basin on laminate legs,
- different outflow grate sizes and outflow pipe diameters,
- possibility to modify the construction according to customer needs,
- possibility to choose the basin colour after project confirmation.

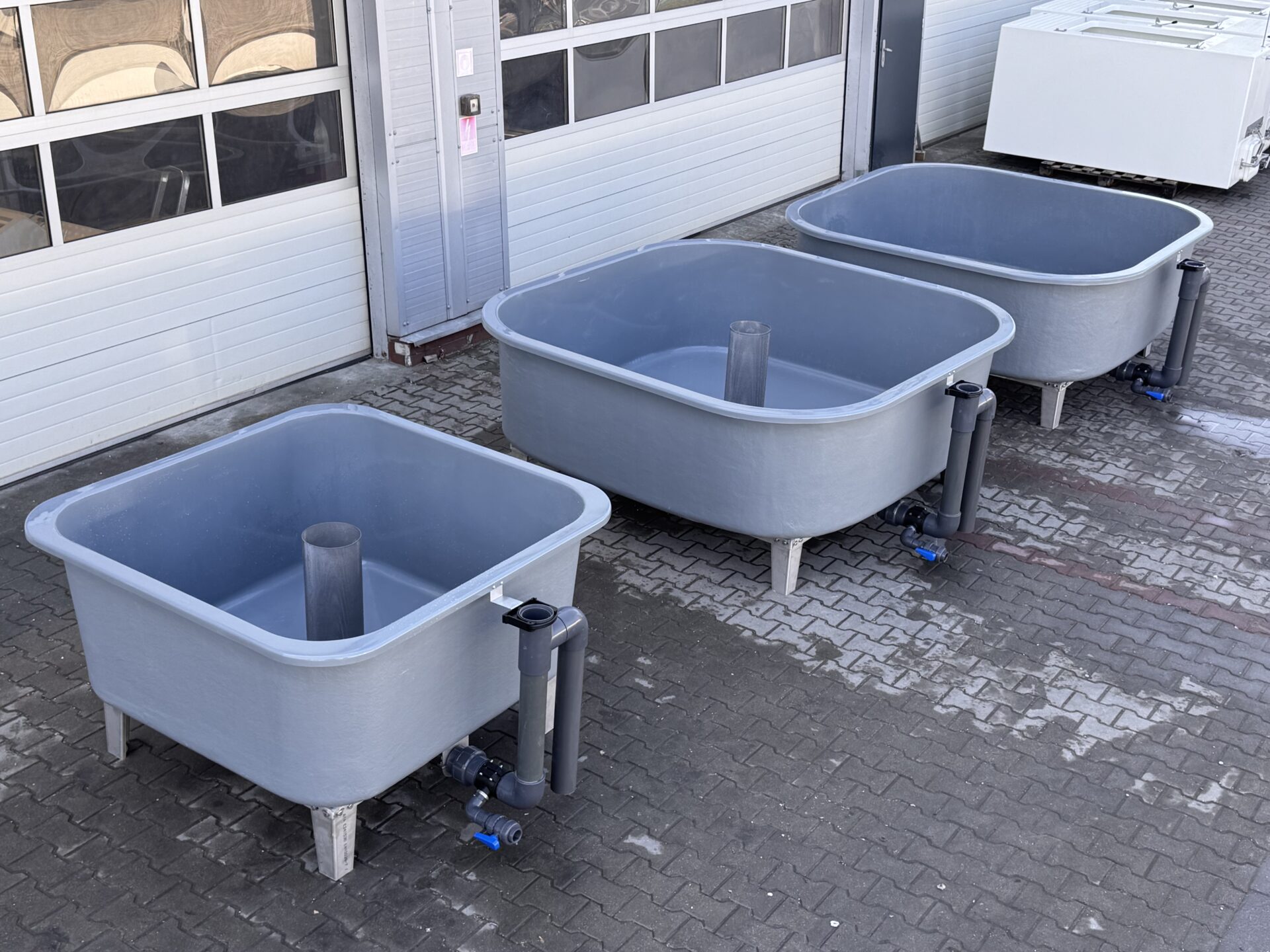

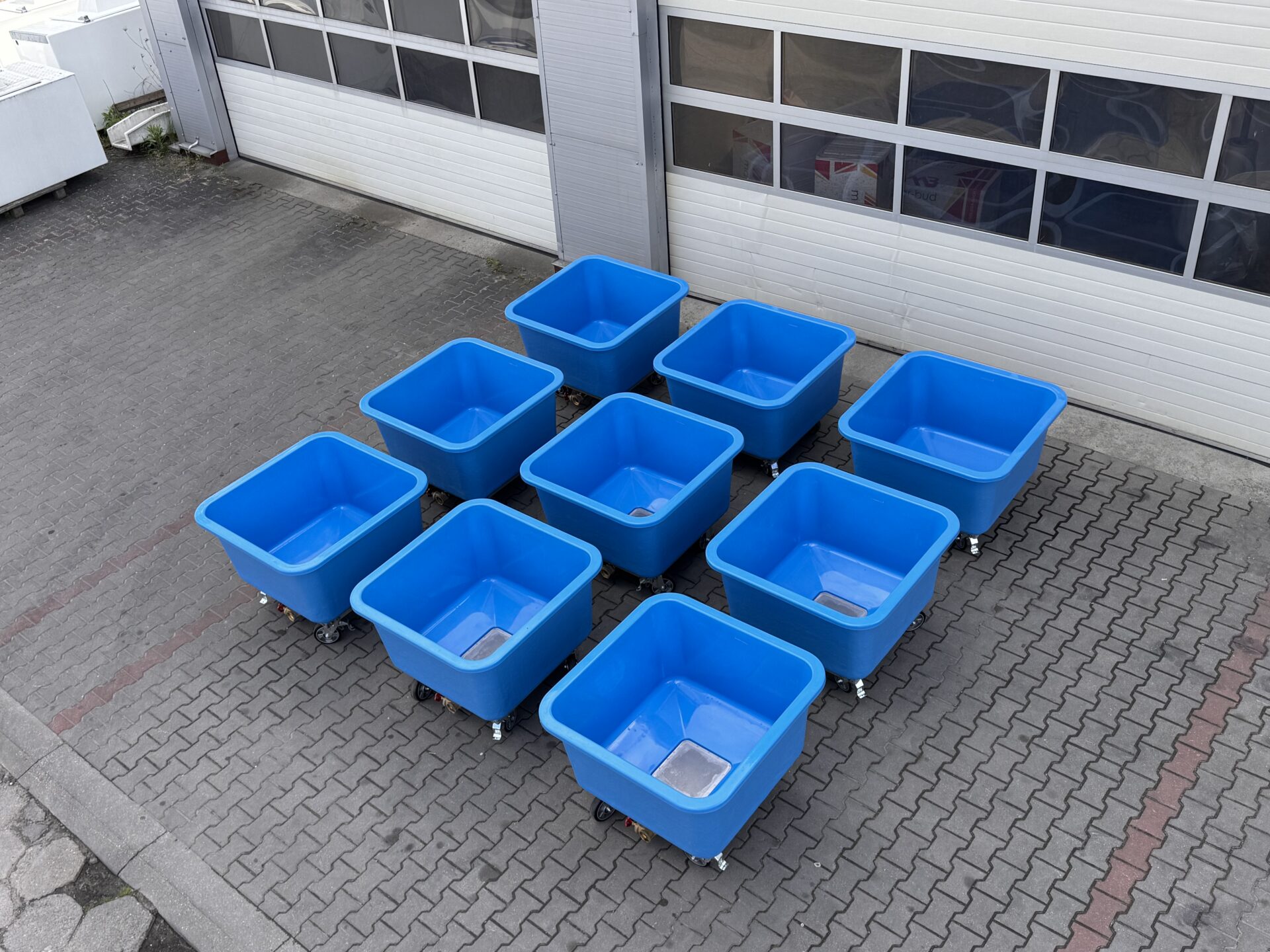

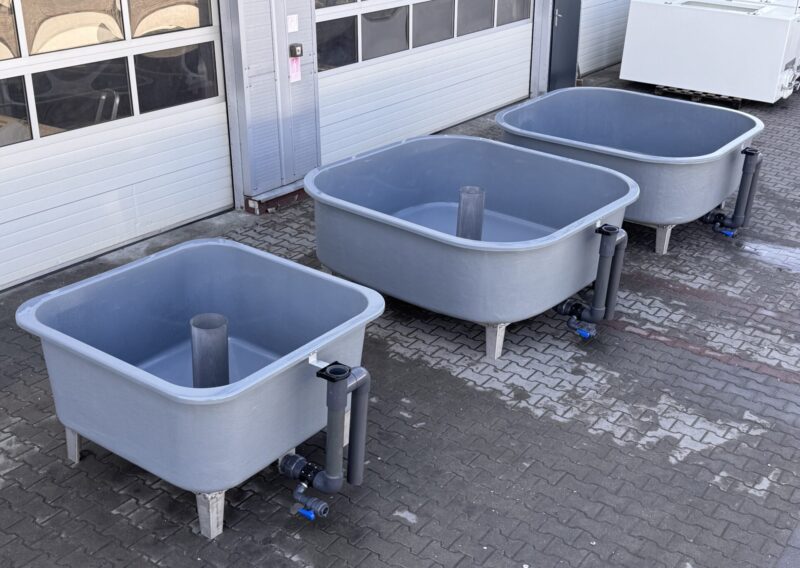

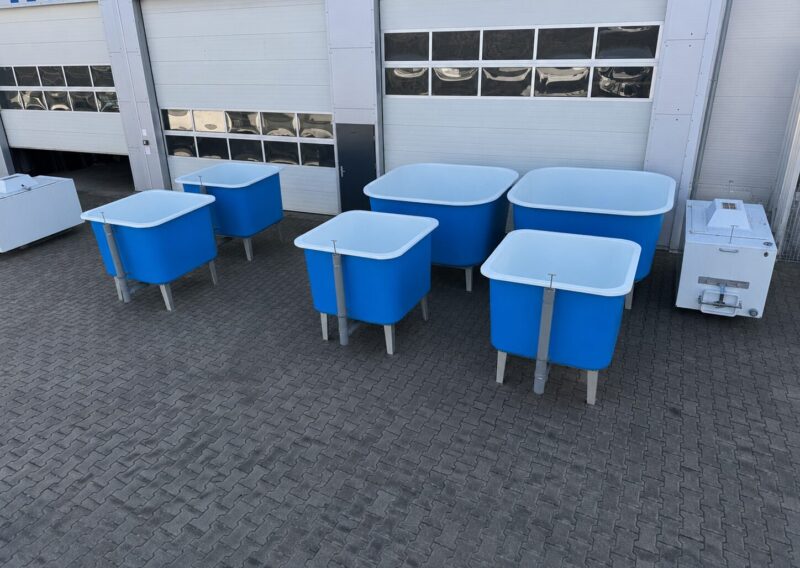

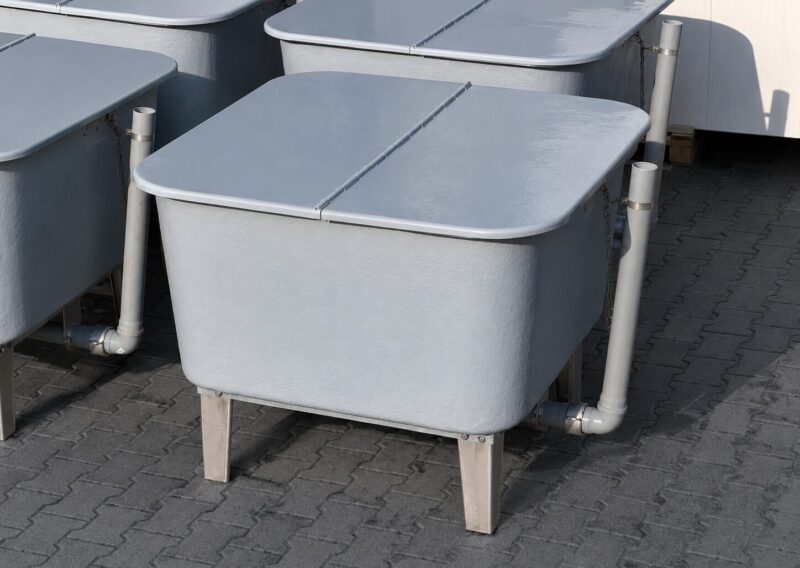

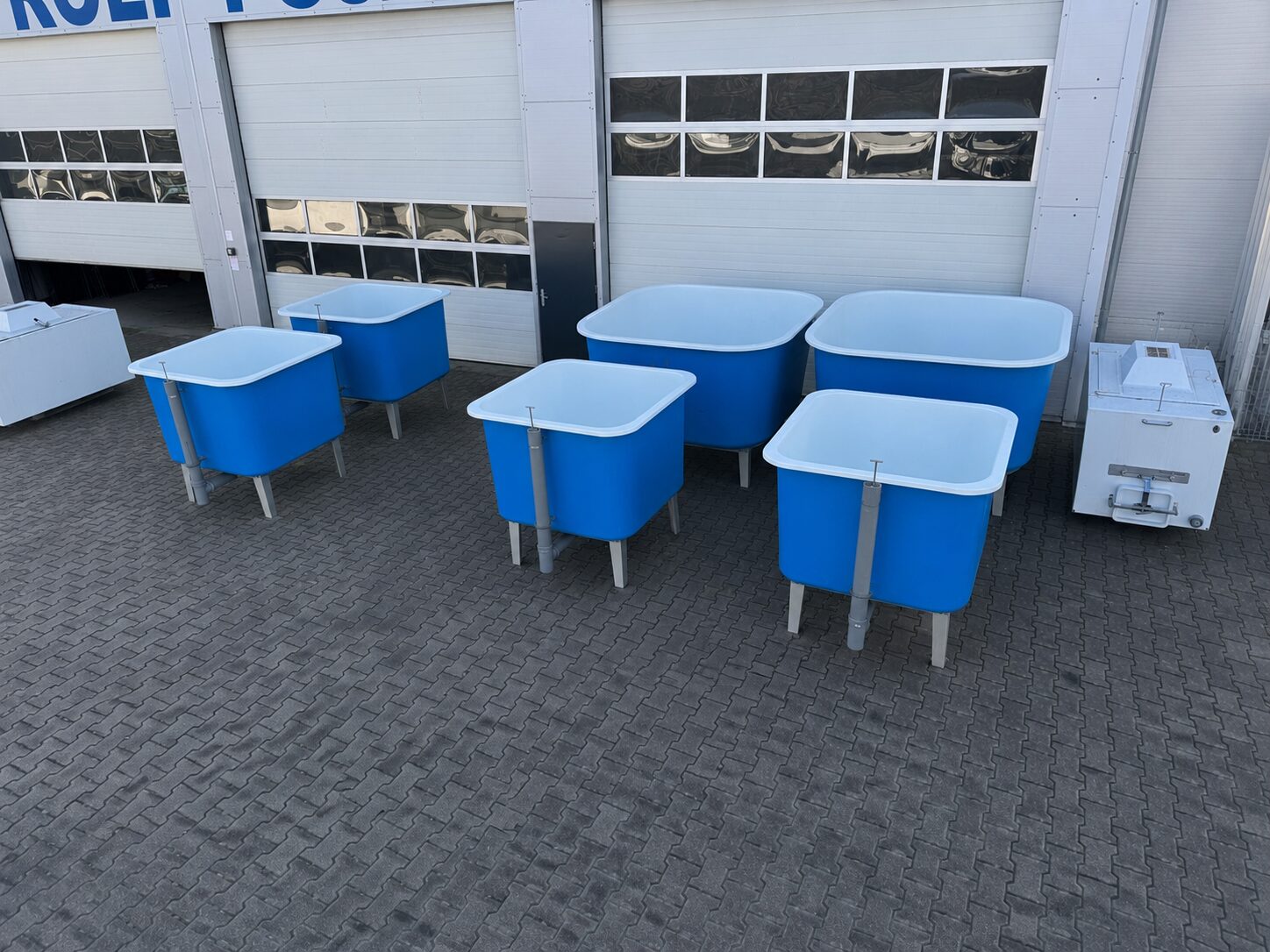

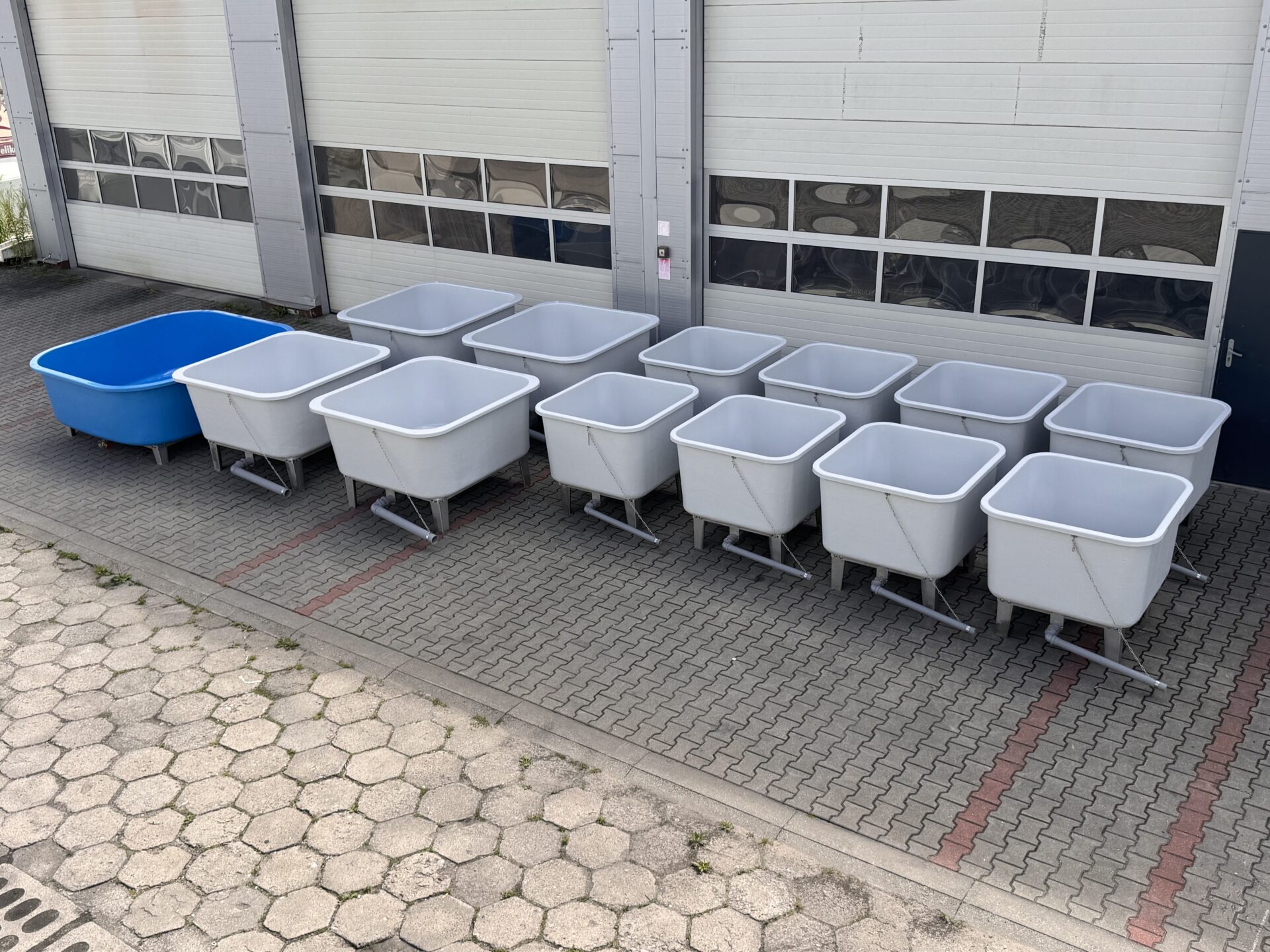

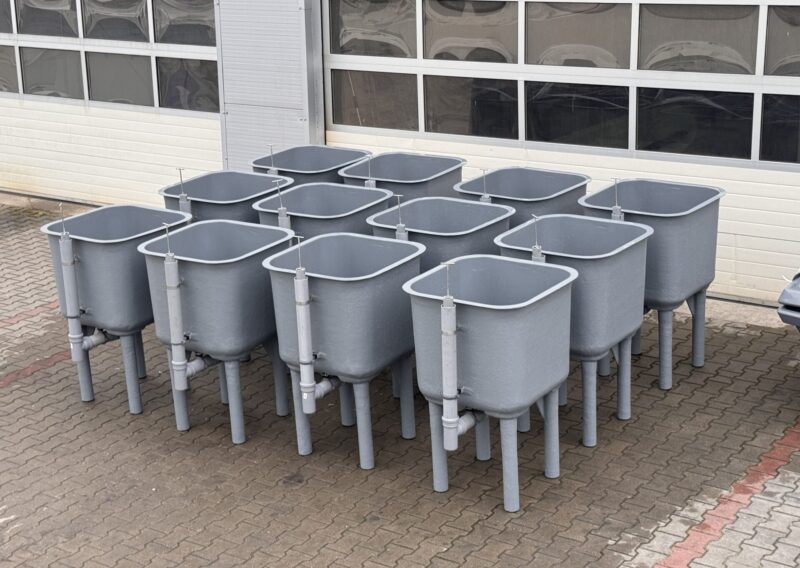

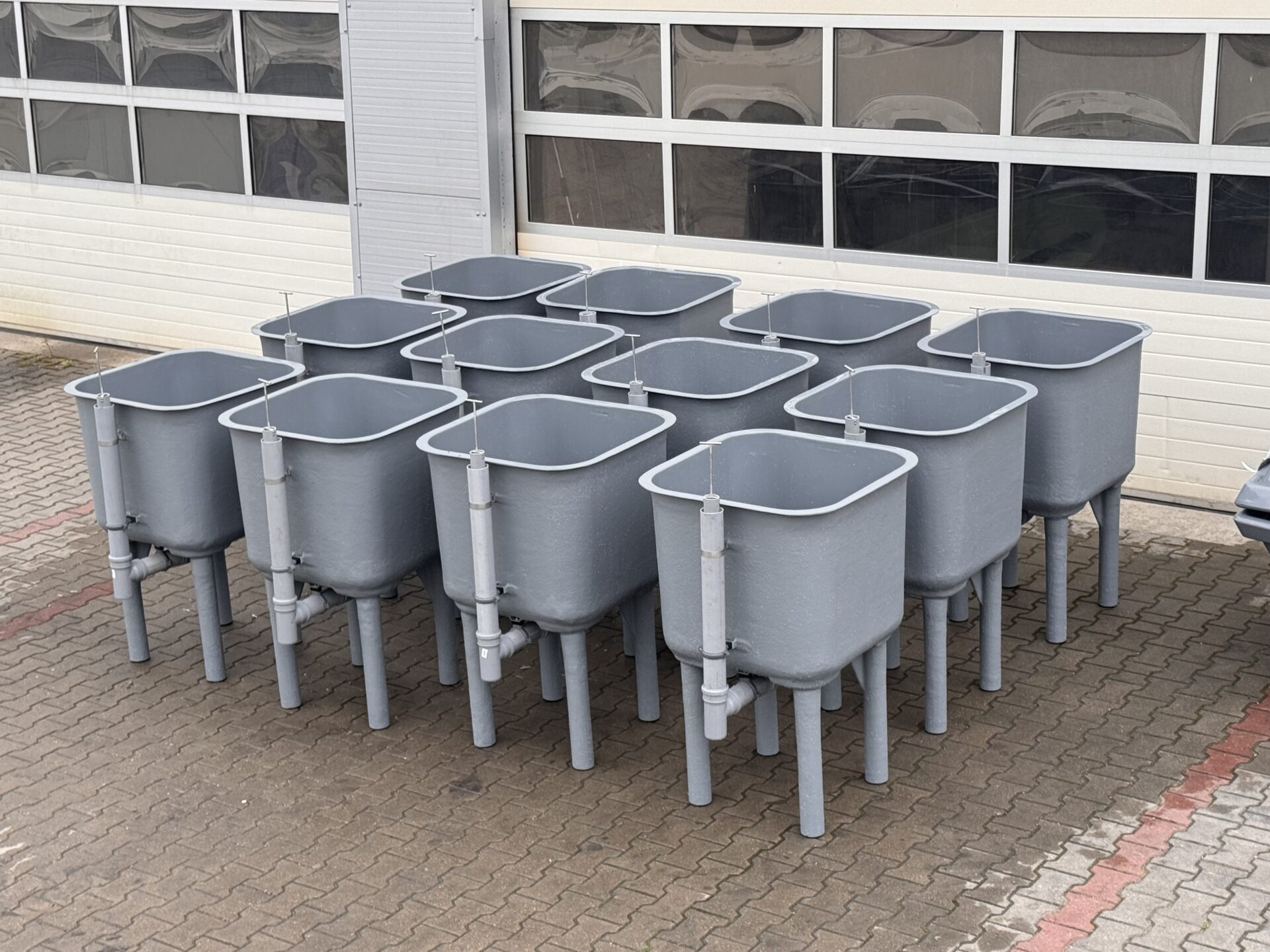

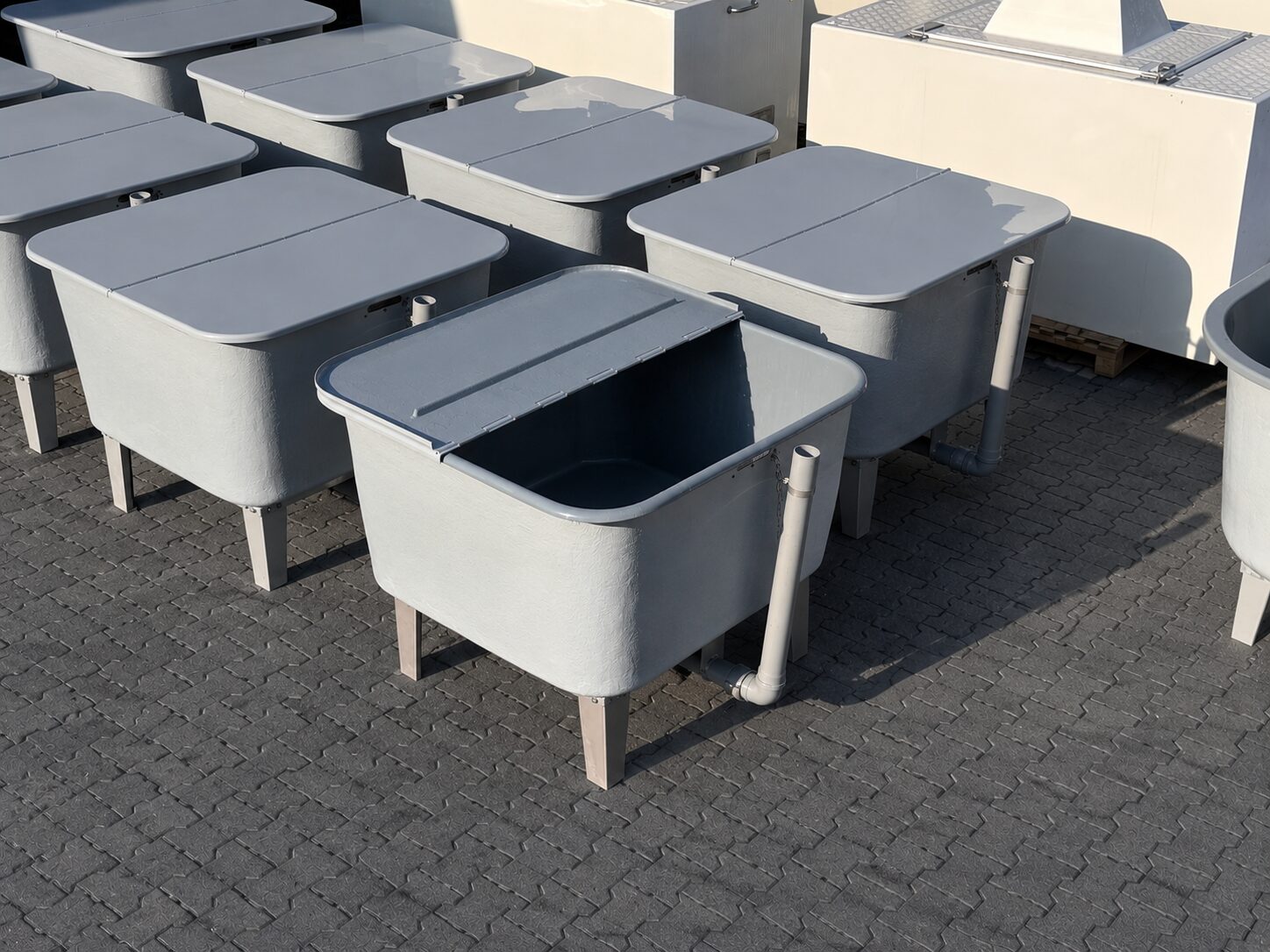

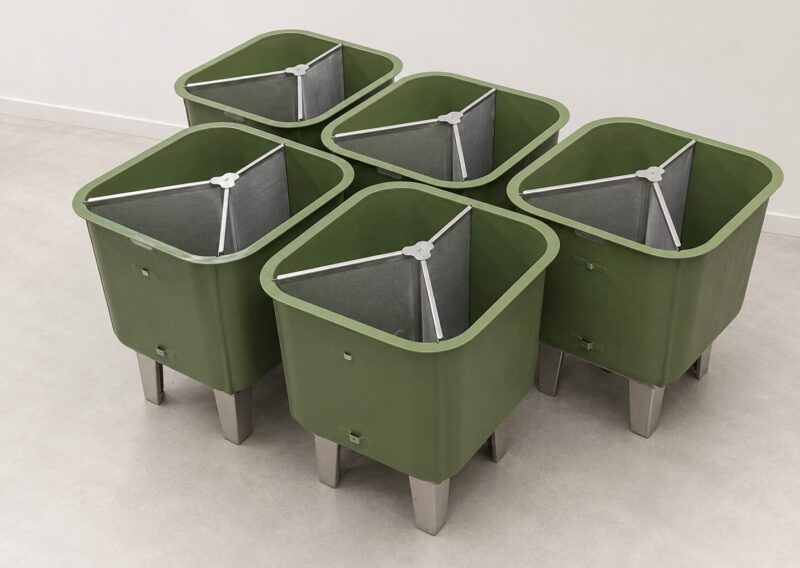

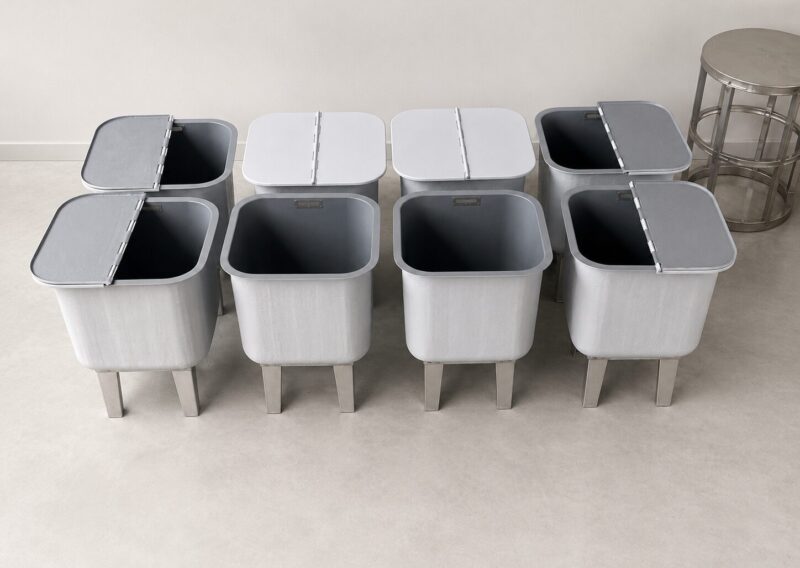

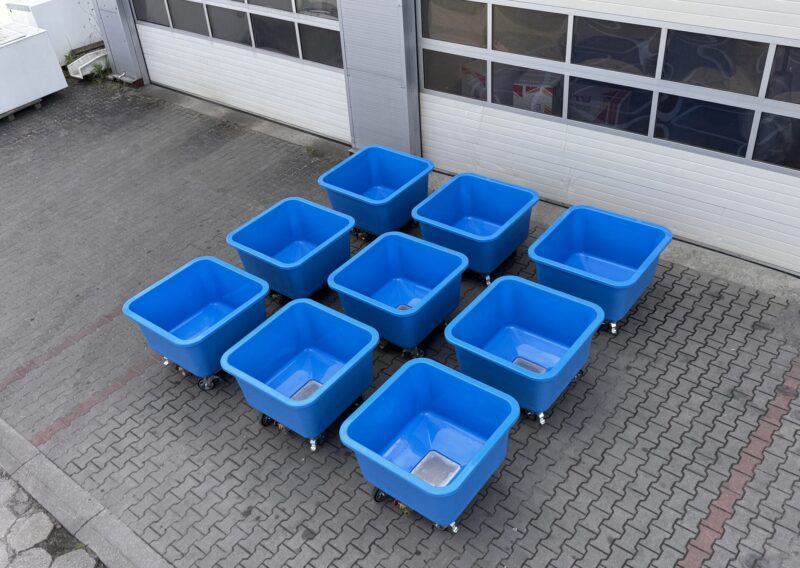

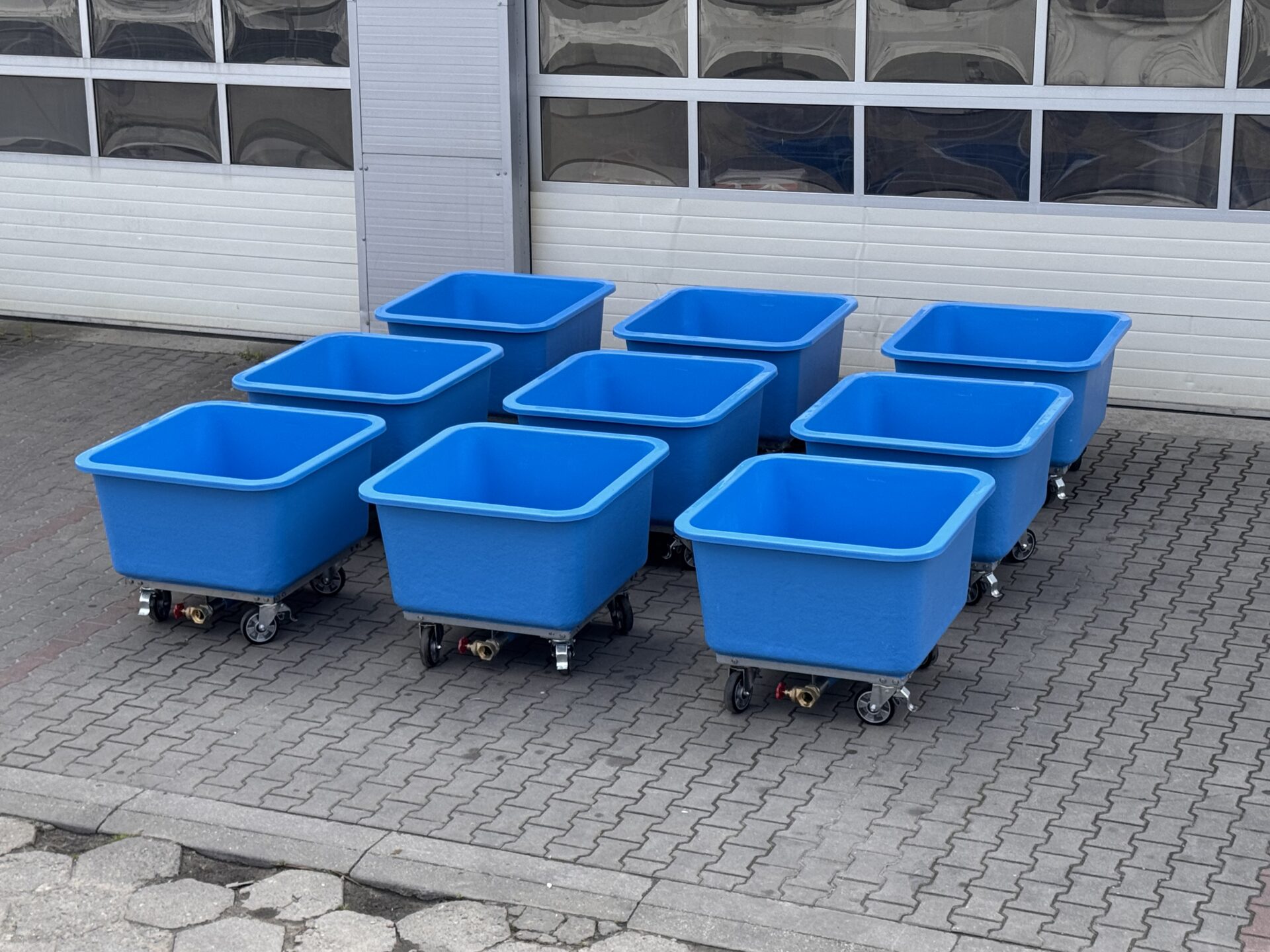

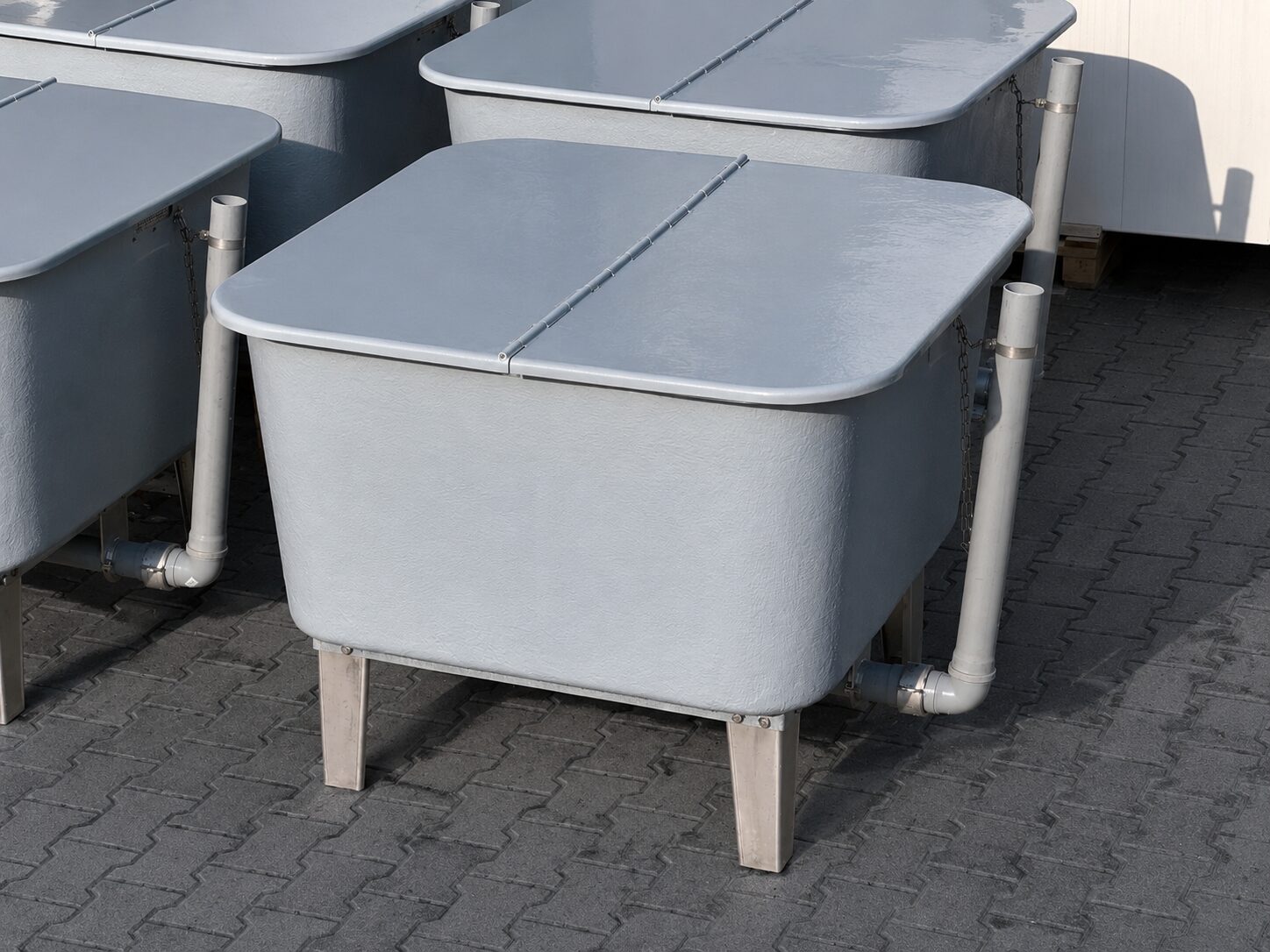

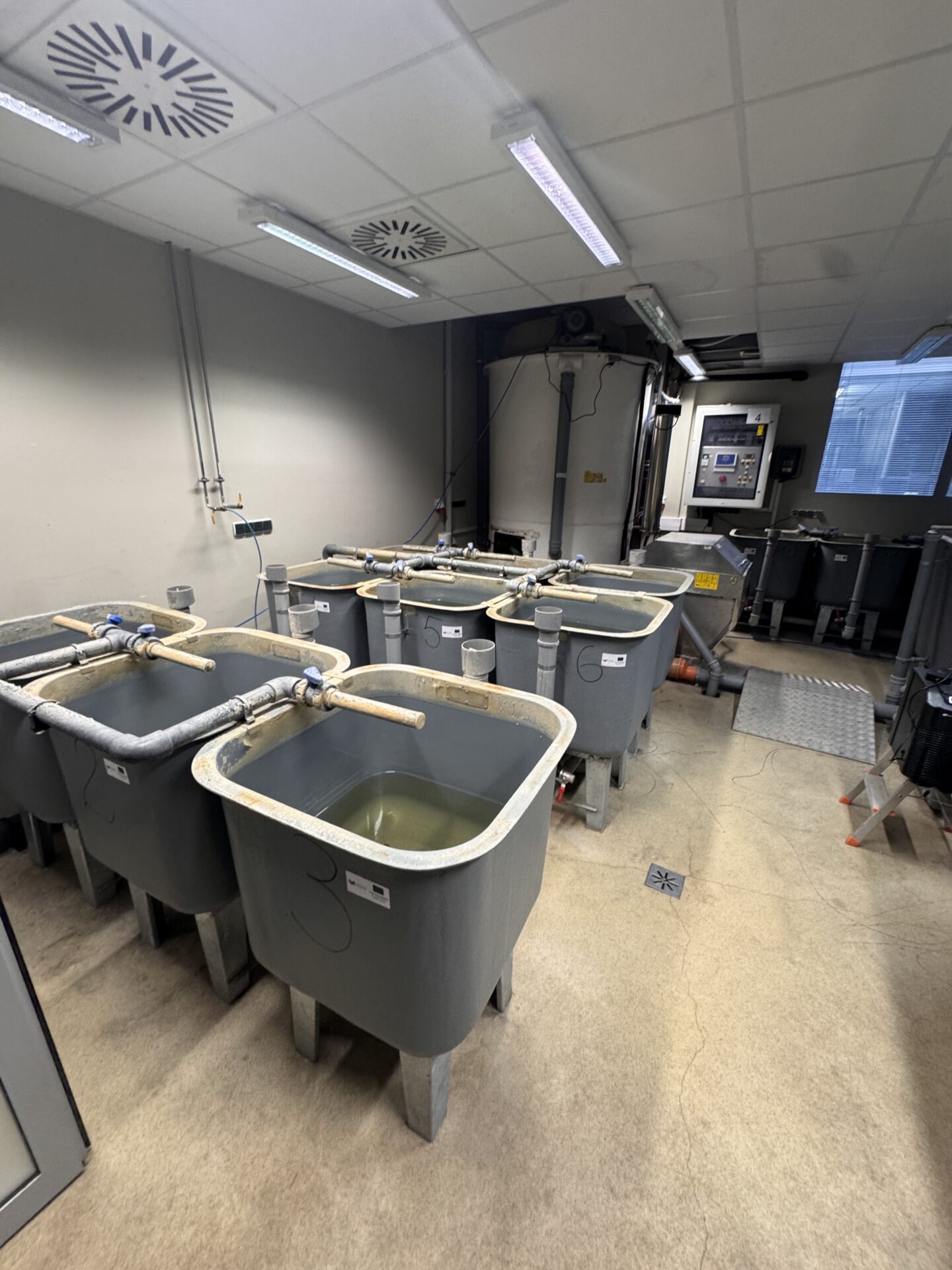

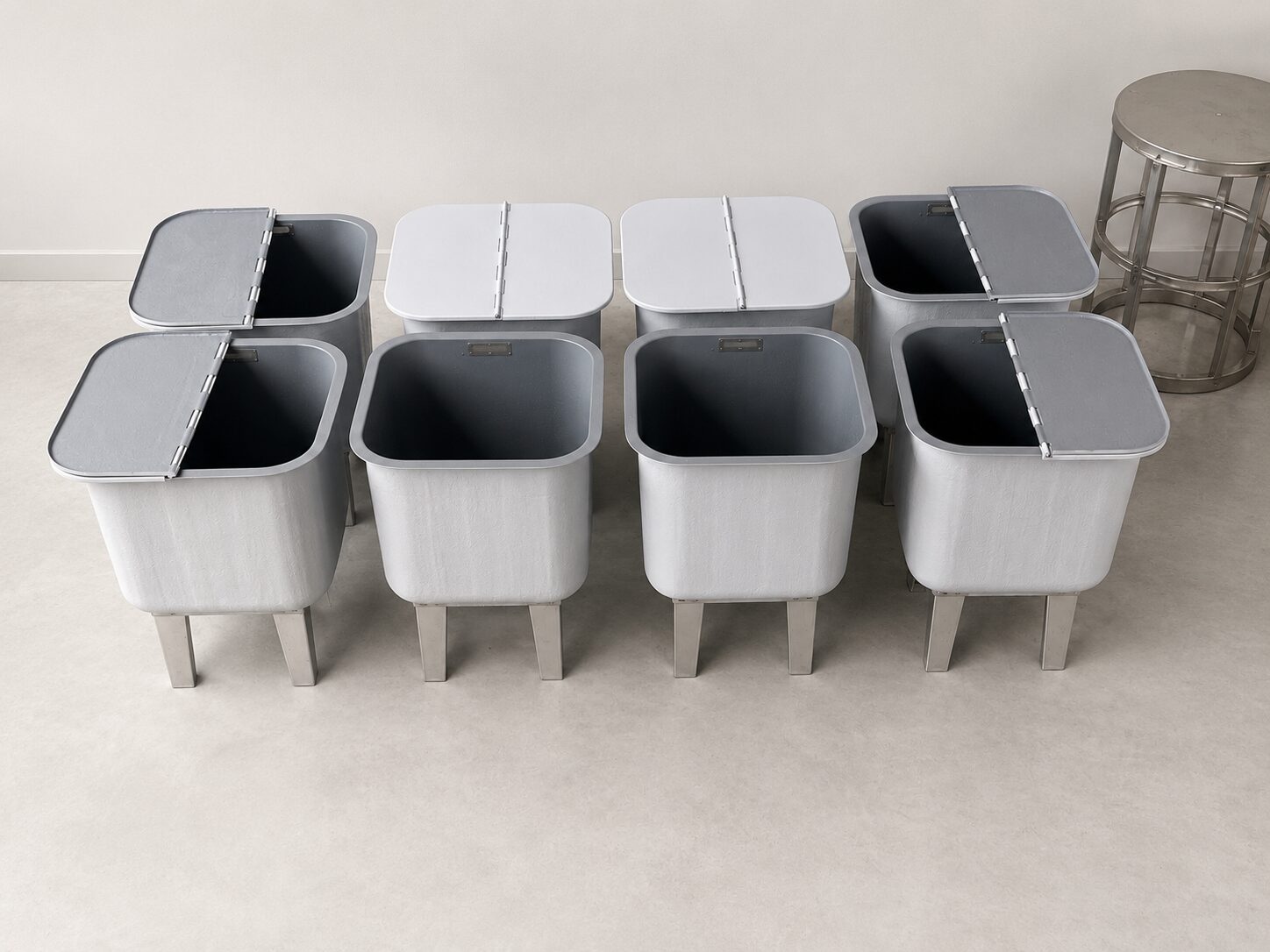

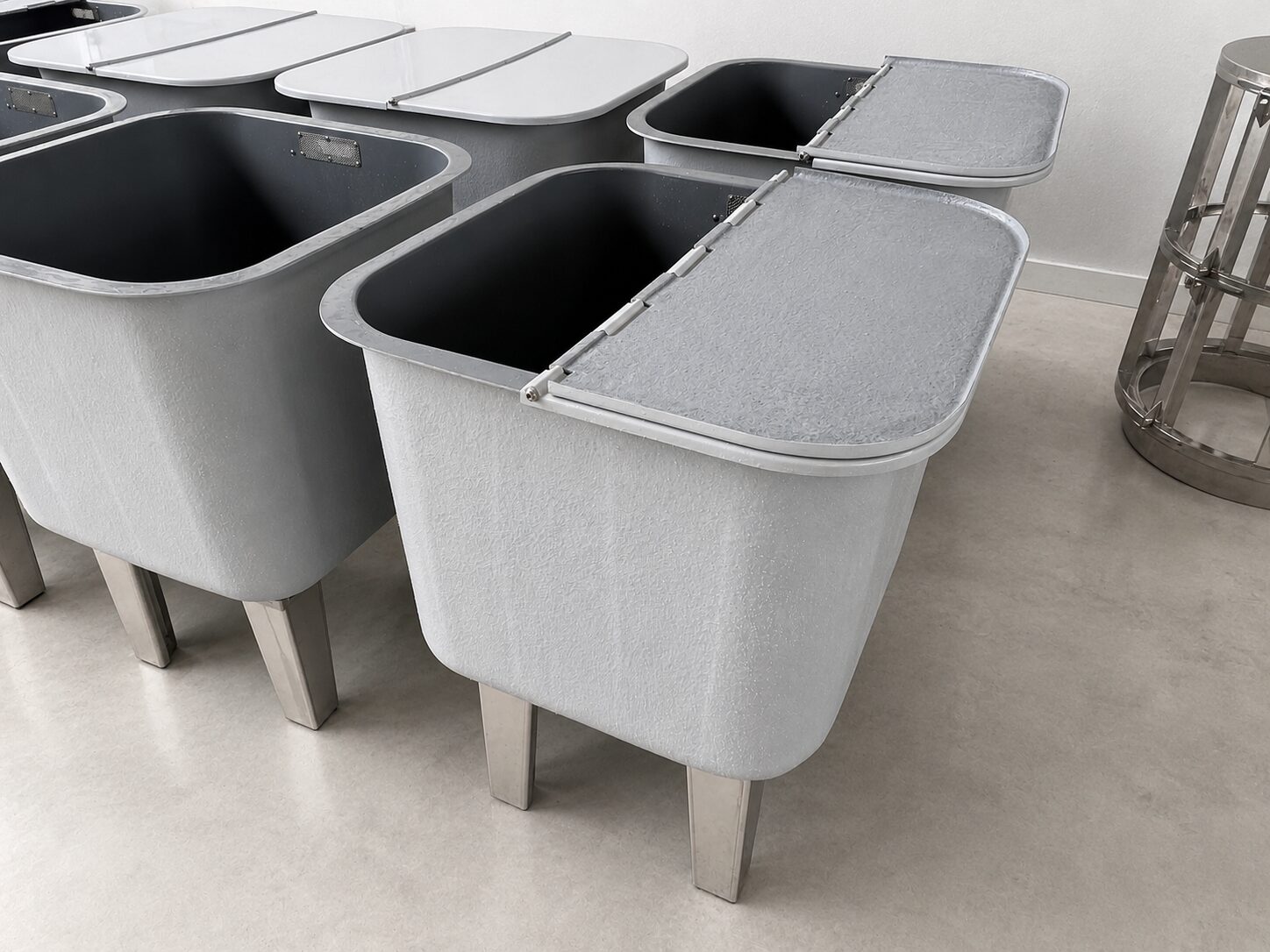

Photo gallery of SDK ST square basins
Profiled corners and easier cleaning
In fish breeding tanks, easy cleaning and daily maintenance are very important. That is why SDK ST square basins can be made with specially profiled corners, which help reduce dirt and organic material accumulation in the corners of the basin.
This solution is especially useful in fish farms where basins are regularly rinsed, emptied and prepared for the next stage of work. A smooth inner surface and properly shaped corners make daily operation more convenient.

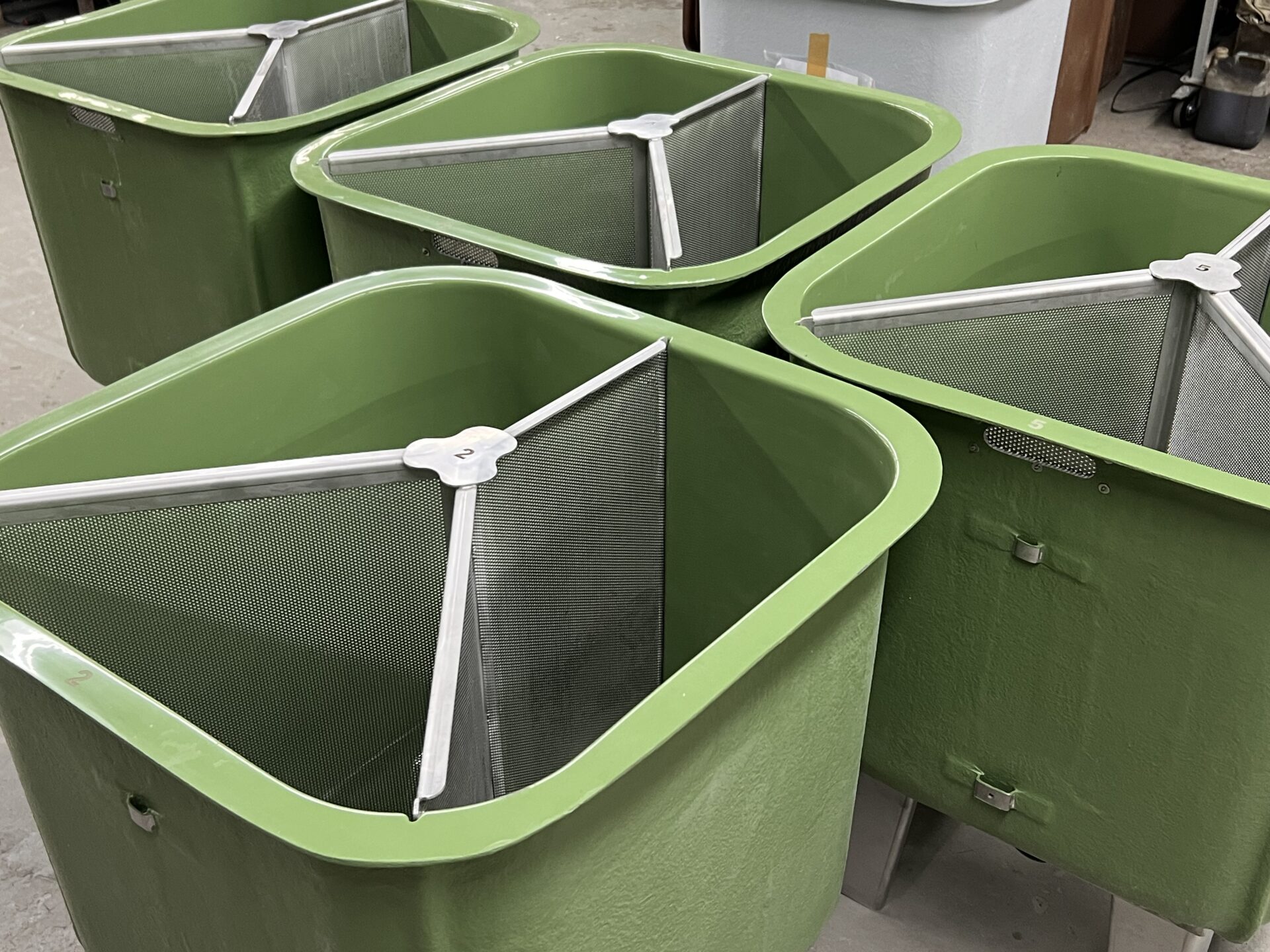

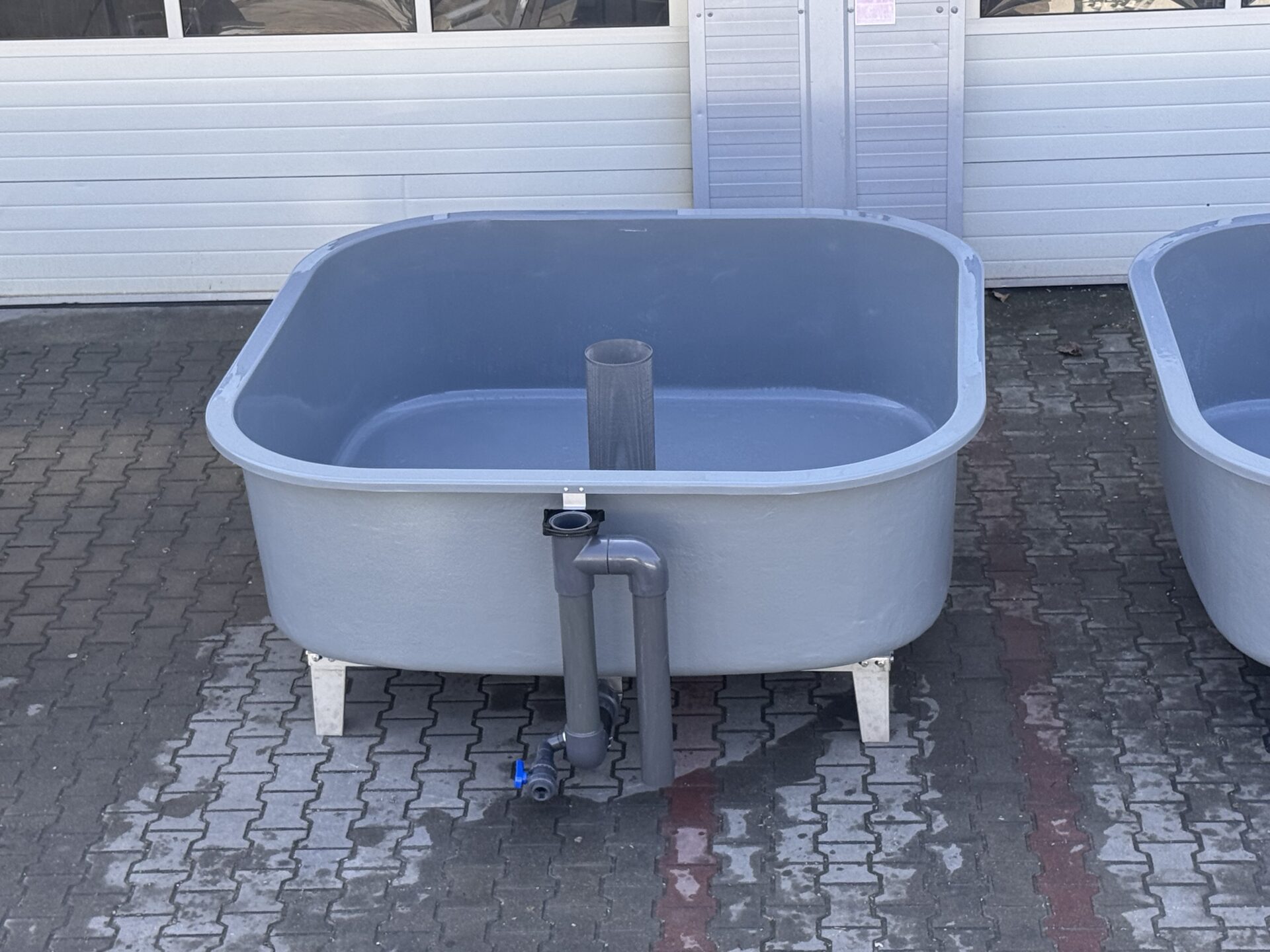

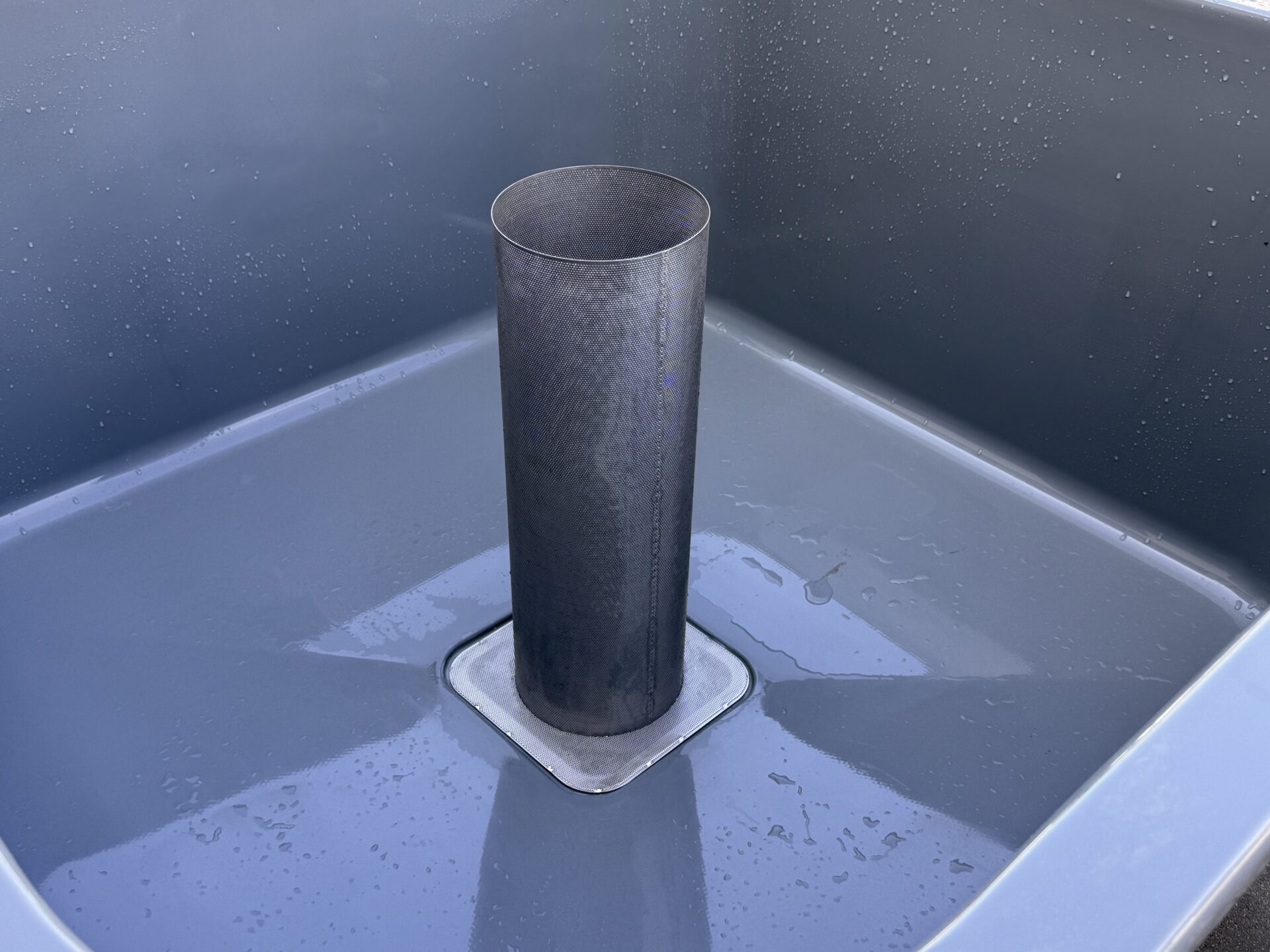

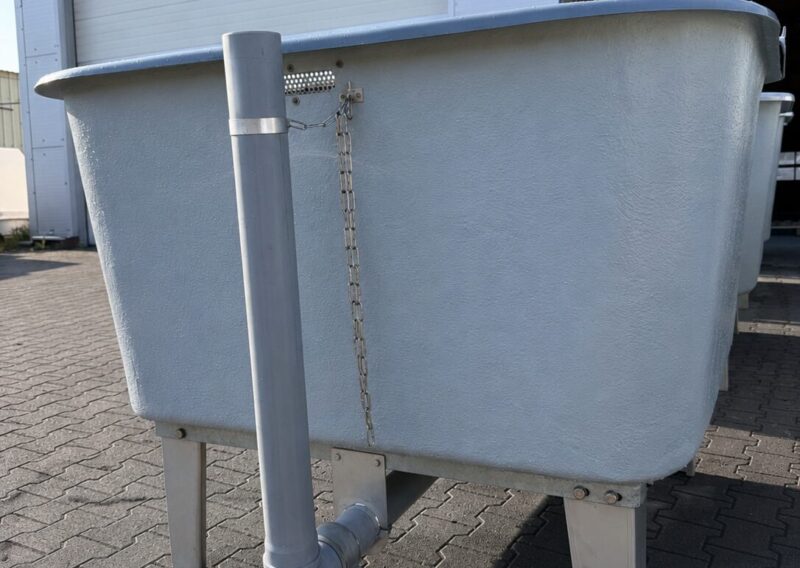

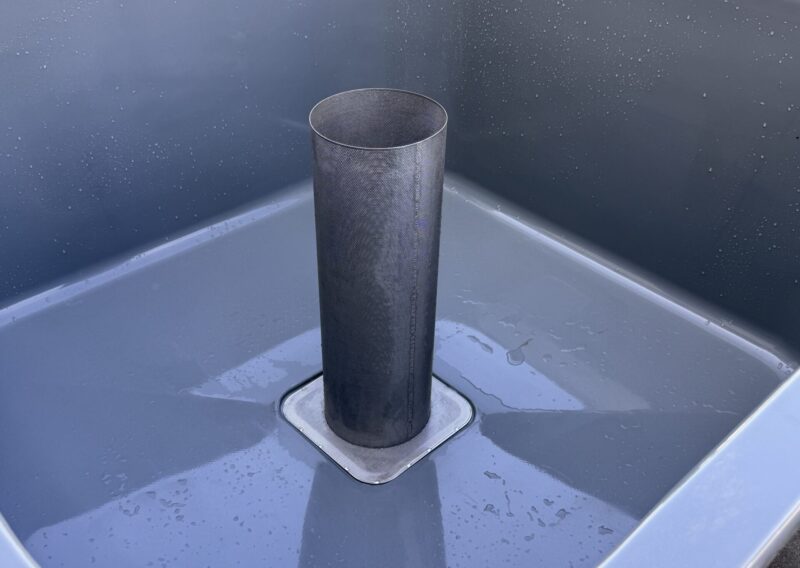

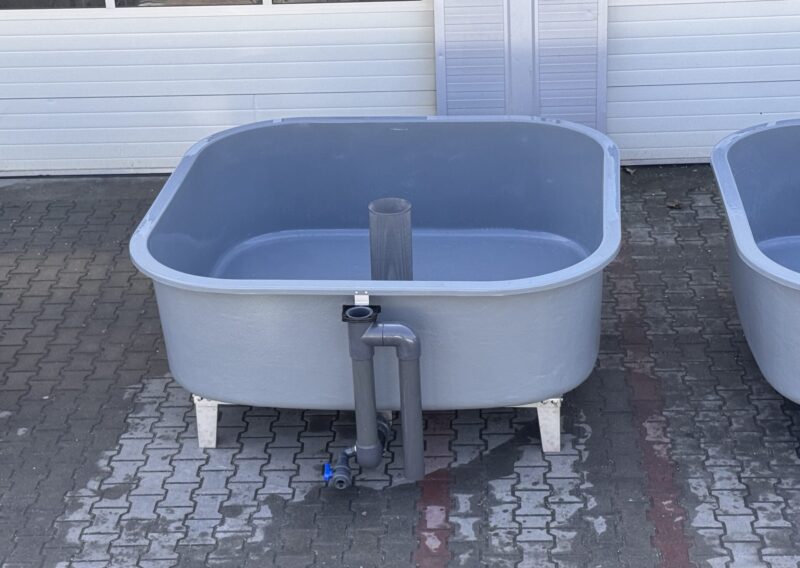

Outflow, grate and water handling

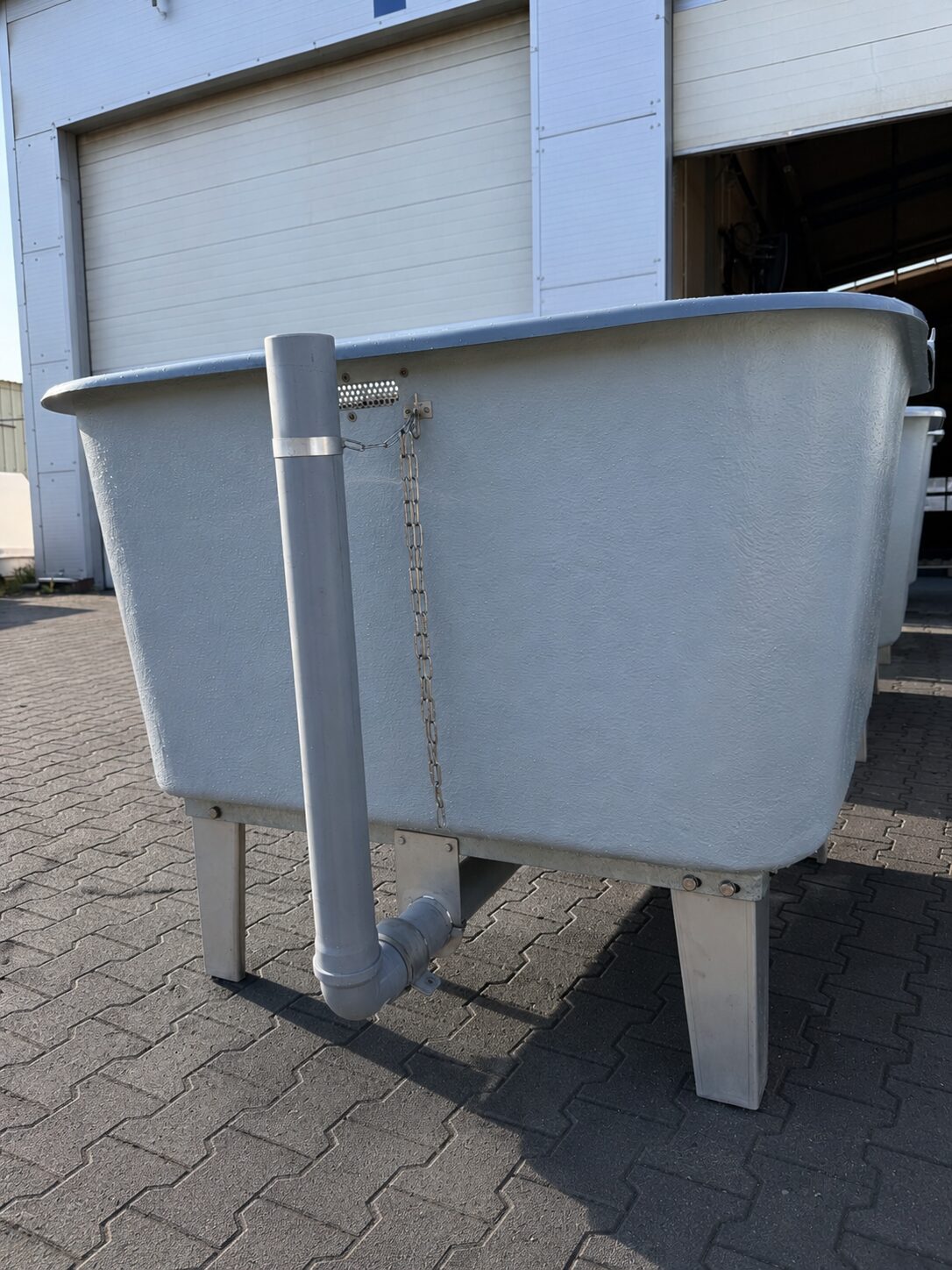

SDK ST square basins for fish breeding can be equipped with outflow grates and outflows matched to the specific model. Depending on the size of the basin, different grate dimensions and outflow pipe diameters can be used.
When designing a fish breeding system, it is important to choose the right outflow and water flow control elements. See also SDK outflow systems for basins and ponds, which can be used as a practical addition to fish breeding basins.

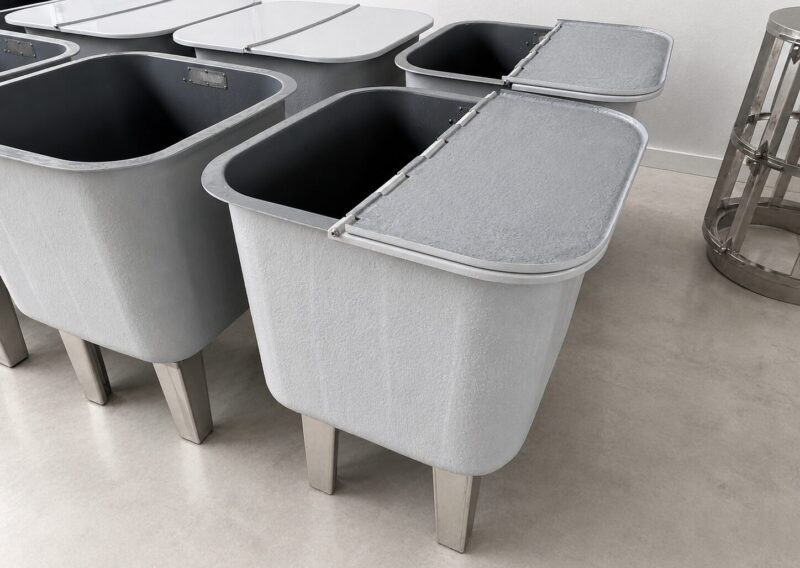

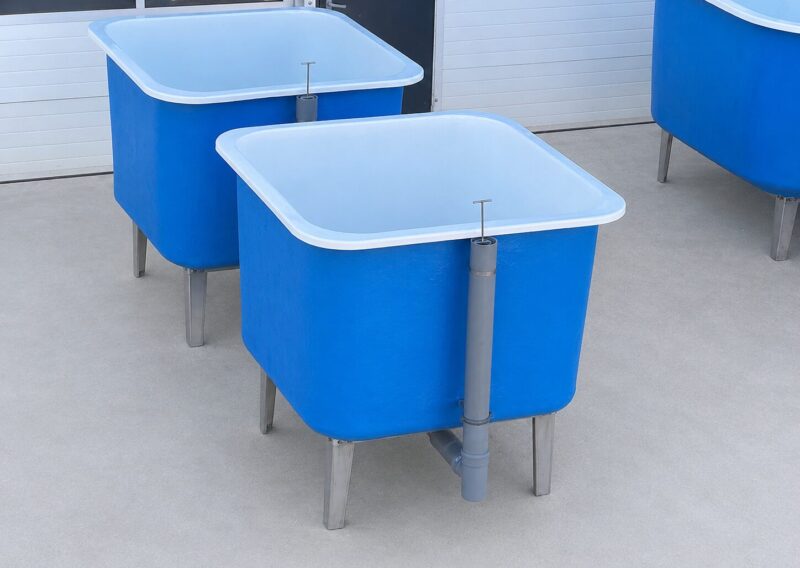

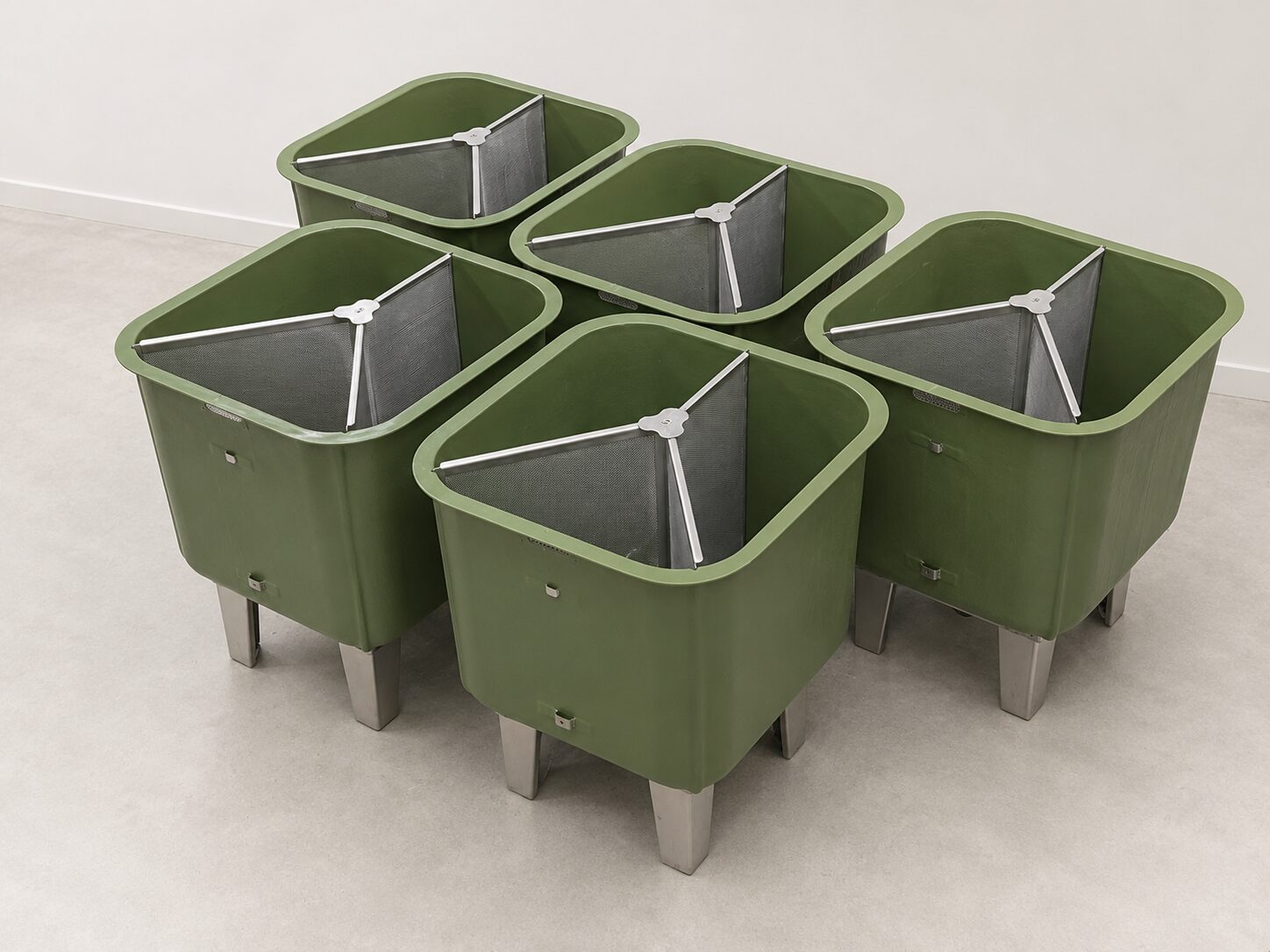

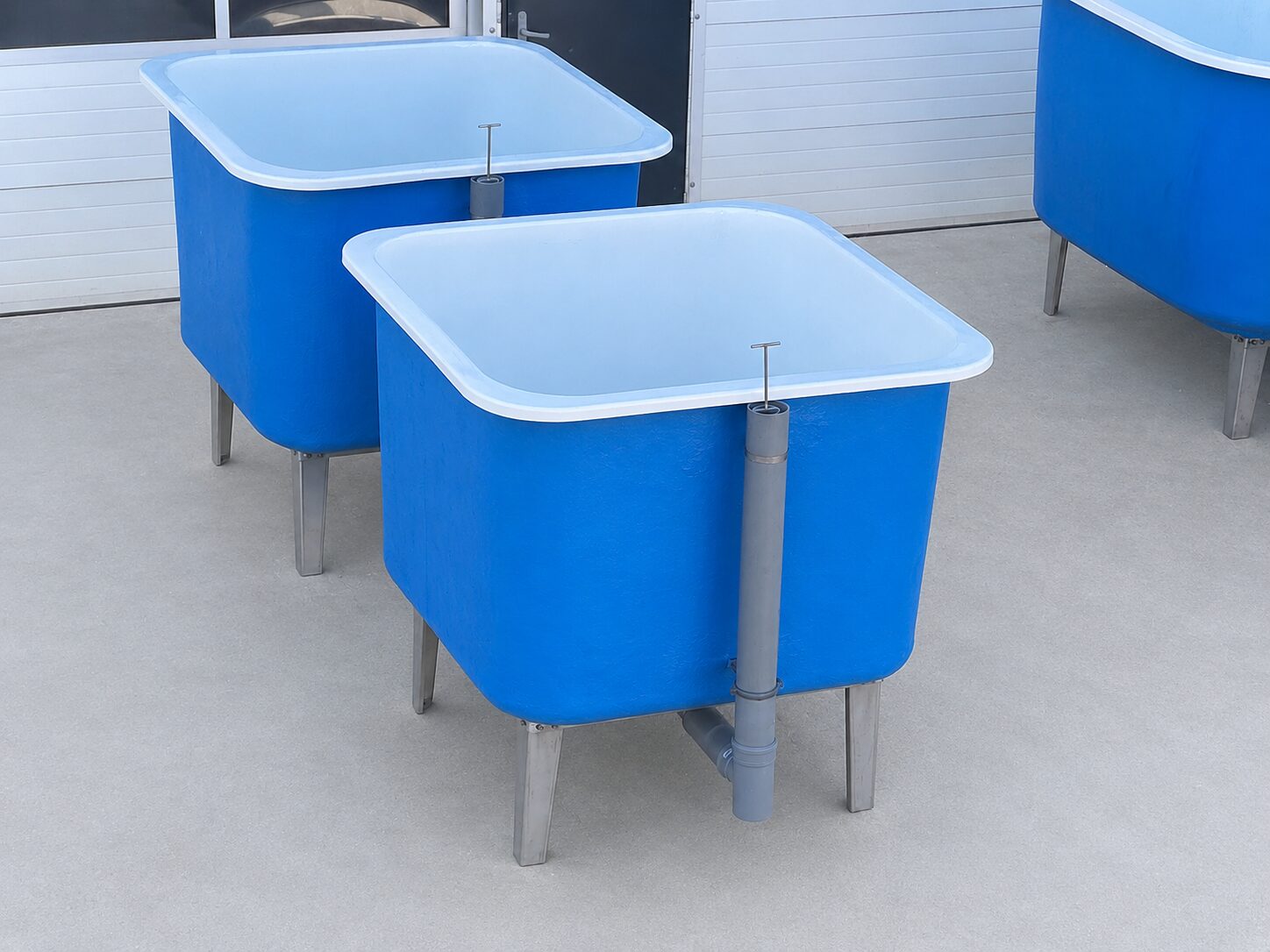

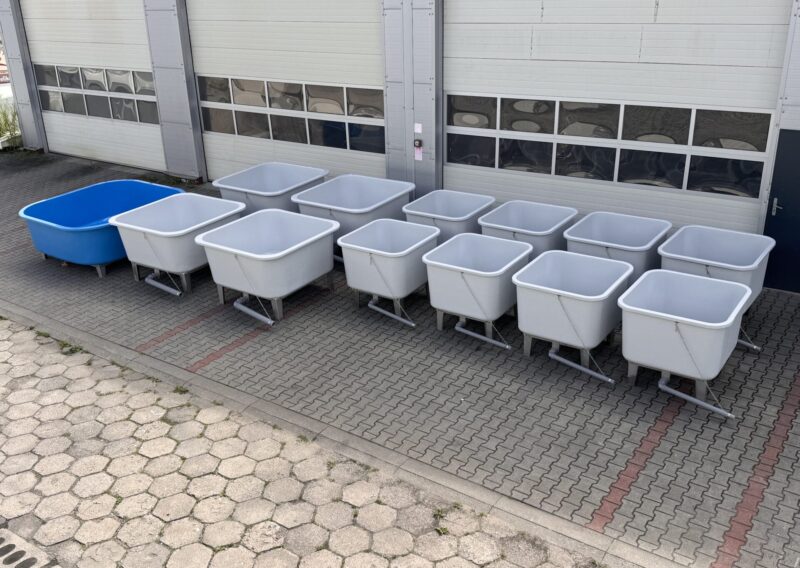

Stainless steel legs or laminate legs
SDK ST basins can be made on stainless steel legs or laminate legs. The choice depends on the installation place, working method, required handling height and technical requirements of the facility.
Stainless steel legs are a good choice where durability, stability and easy cleaning are important. Laminate legs can be used when the customer needs a construction fully adapted to the basin and the working conditions.

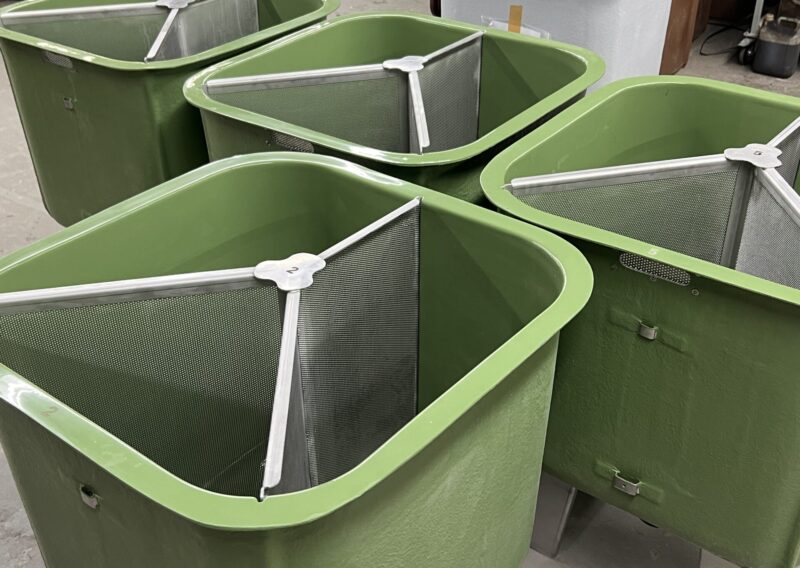

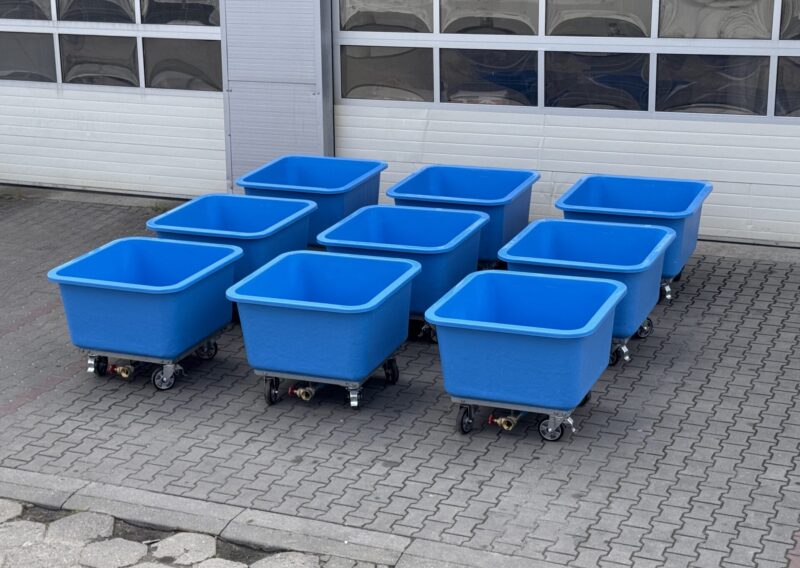

Custom modifications and basin colour
Square basins for fish breeding can be modified according to customer needs. It is possible to adjust the dimensions, outflow system, height, support construction, type of legs, colour and additional equipment.
Thanks to this, the basin can be prepared not only as a standard fish tank, but also as part of a specific breeding process. The customer can choose a solution adapted to the facility, working station and fish handling method.
Technical data of SDK ST basins
| Cat. no. | Symbol | L [m] | B [m] | G [m] | H [m] | Outflow grate [cm] | Outflow pipe [mm] | Capacity [m3] |
|---|---|---|---|---|---|---|---|---|
| 2.1.1 | SDK ST 07-02 wide rim | 0.7 | 0.78 | 0.63 | 0.75 | 24 x 24 | 50-75 | 0.23 |
| 2.1.2 | SDK ST 07-02 | 0.7 | 0.74 | 0.63 | 0.75 | 24 x 24 | 50-75 | 0.23 |
| 2.1.3 | SDK ST 10-03 | 0.9 | 1 | 0.5 | 0.6 | 30 x 30 | 50-75 | 0.31 |
| 2.1.4 | SDK ST 07-03 wide rim | 0.7 | 0.79 | 0.78 | 0.89 | 24 x 24 | 50-75 | 0.34 |
| 2.1.5 | SDK ST 08-05 | 0.99 | 0.89 | 0.68 | 0.82 | 24 x 24 | 50-75 | 0.45 |
| 2.1.6 | SDK ST 11-07 | 1 | 1.1 | 0.68 | 0.8 | 24 x 24 | 50-75 | 0.7 |
| 2.1.7 | SDK ST 12-07 | 1.19 | 1.28 | 0.65 | 0.83 | 30 x 30 | 50-110 | 0.74 |
| 2.1.8 | SDK ST 15-07 | 1.5 | 1.62 | 0.4 | 0.54 | 30 x 30 | 50-75 | 0.74 |
| 2.1.9 | SDK ST 12-09 | 1.25 | 1.35 | 0.7 | 0.8 | 25 x 25 | 50-75 | 0.9 |
| 2.1.10 | SDK ST 12-10 | 1.2 | 1.3 | 0.9 | 1.1 | 30 x 30 | 50-110 | 1.03 |
The full SDK ST range includes models from compact basins for smaller working stations to large tanks with a capacity of up to 20.8 m3. The final model, outflow and construction details can be selected according to the project.
Who are SDK ST square basins designed for?

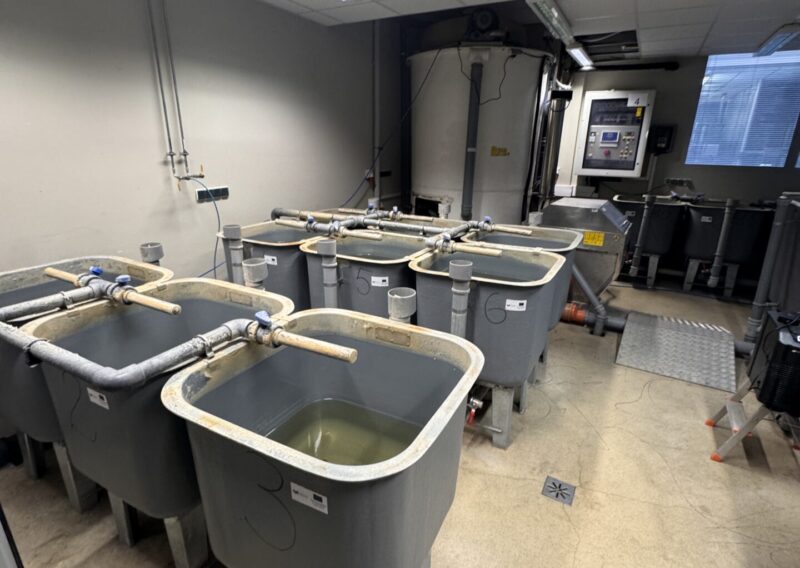

SDK ST square basins are designed for fish farms, hatcheries, breeding facilities and customers who need functional tanks for different stages of fish breeding and fish handling.
They are a good solution wherever convenient basin arrangement, easy cleaning, outflow adjustment and custom construction are important.
Square basins for fish breeding SDK ST are designed for customers who expect a durable, practical and easy-to-use tank adapted to the working conditions of a fish farm.
