Equipment for Adjusting Basins
Equipment for adjusting basins from SDK includes the components required to prepare a complete system for live fish transportation. The equipment is selected according to the type of fish transport tanks, the number of basins, the vehicle, the method of water filling, oxygenation and fish unloading.
Properly selected equipment is very important in the everyday work of fish farms and transport companies. It makes the transport system easier to operate, reduces preparation time and helps control water and oxygen flow more effectively. As a result, the whole system is more convenient for the operator and safer for the transported fish.
The offer includes outlet chutes, oxygen frames, oxygen flow regulators, reducers, protection boxes for rotameters, fittings for oxygen bottles, holders for fixing tanks to the vehicle platform and additional accessories for fish transport tanks. Individual elements can be adapted to specific tank models and to the vehicle installation layout.
Outlet Chutes for Fish Unloading
Outlet chutes make controlled fish unloading from the tank easier. They can be used with single fish transport tanks as well as with larger transport systems. Depending on the unloading area, different chute lengths or chutes prepared for connection with PVC pipe systems can be used.
A properly selected outlet chute reduces manual work and helps organise the unloading process. Other chute dimensions can be manufactured on request, so the equipment can be matched to the platform height, tank layout and receiving installation.
| Outlet Chutes | |
| Cat. nr | Symbol / Name |
| 1.4.1.1 | SDK FTCo1,2 – Outlet chute 1.2 m |
| 1.4.1.2 | SDK FTCo2 – Outlet chute 2 m |
| 1.4.1.3 | SDK FTOd110-300 – Outlet chute Ø110-300 |
| * Other chute dimensions are available on request. | |

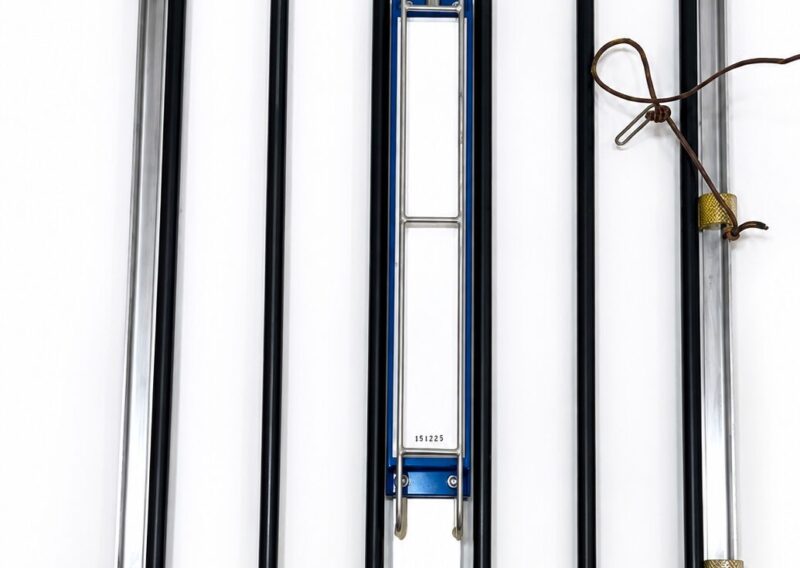

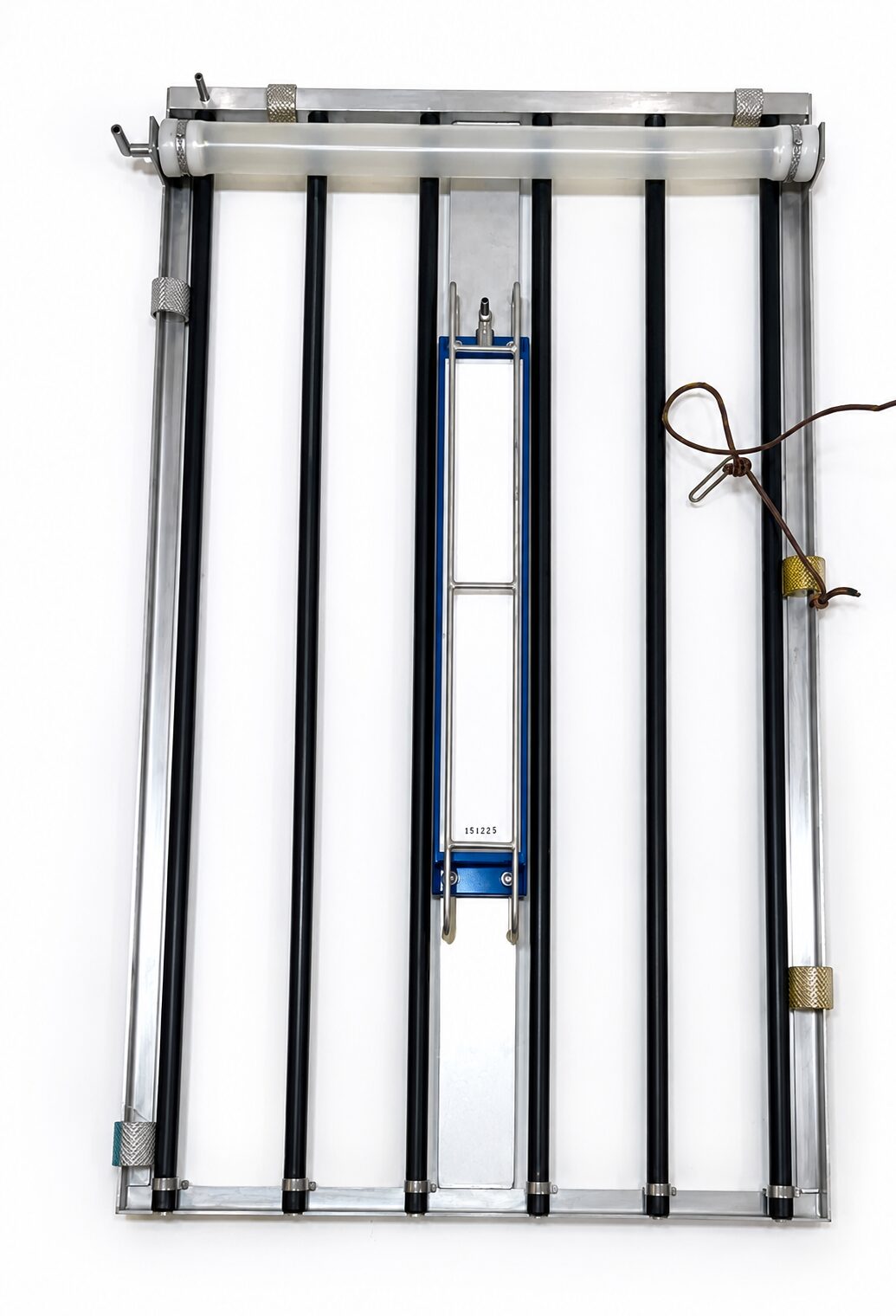

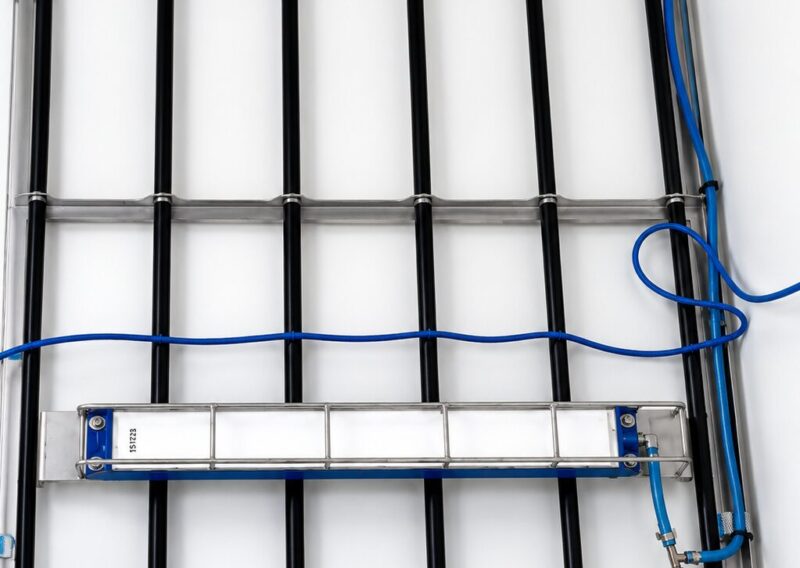

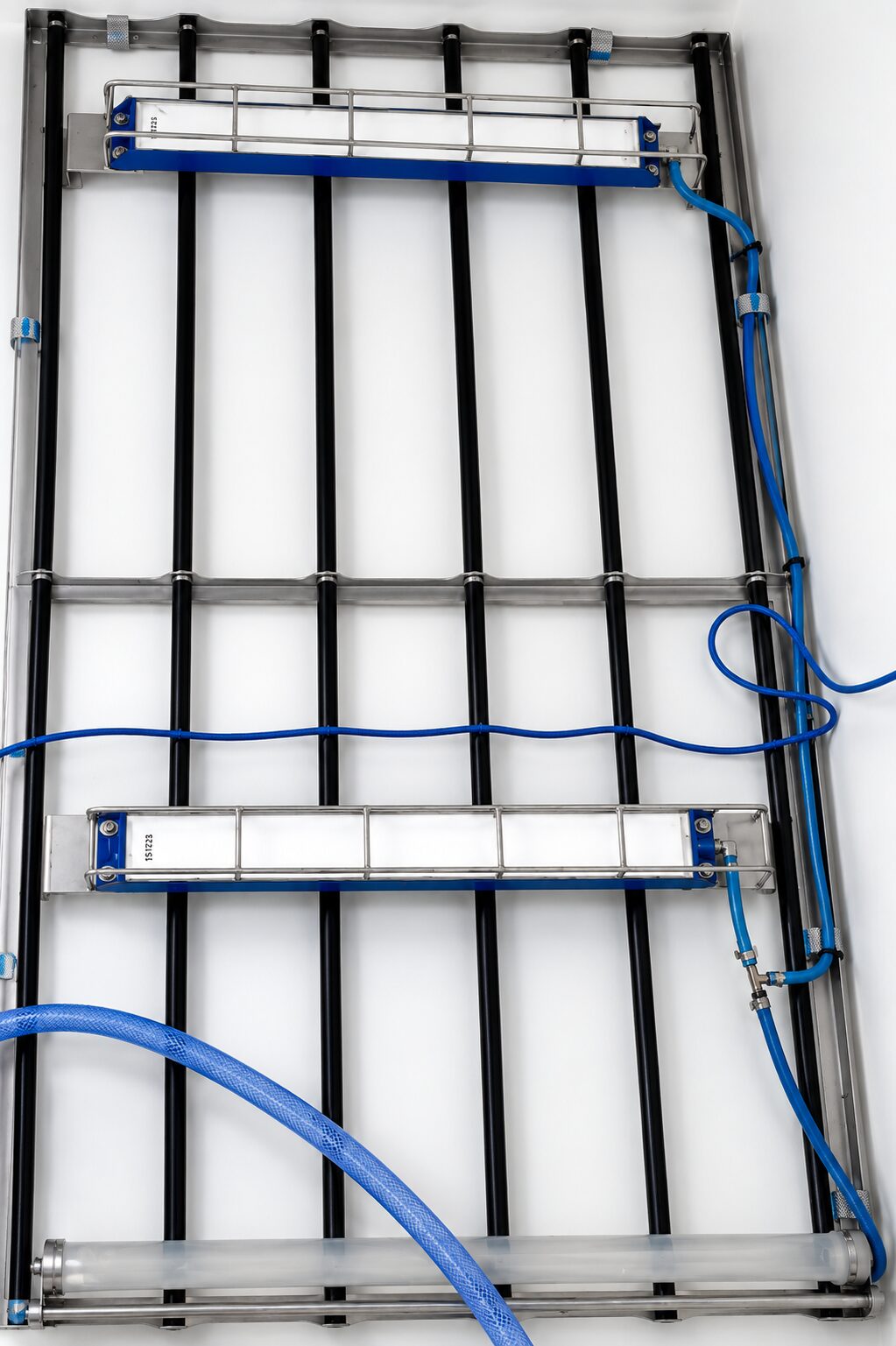

Oxygen Frames
Oxygen frames are among the most important elements of a live fish transport system. Their task is to supply oxygen to the water in a way that is matched to the tank capacity and transport conditions.
We manufacture oxygen frames in different dimensions for tanks of various capacities. Segmented solutions are also available, making installation and adjustment to a specific vehicle layout easier.
Each oxygen frame can be equipped with an air diffuser or a solution prepared for oxygen supply. At the customer’s request, we can also install ceramic diffusers for pure oxygen supply, selected according to tank capacity and operating conditions.
| Oxygen Frames | |
| Cat. nr | Symbol / Name |
| 1.4.2.1 | SDK FTOf800 – Oxygen frame 580 mm x 900 mm |
| 1.4.2.2 | SDK FTOf1000 – Oxygen frame 580 mm x 1000 mm |
| 1.4.2.3 | SDK FTOf1200 – Oxygen frame 600 mm x 1400 mm |
| 1.4.2.4 | SDK FTOf1300 – Oxygen frame 760 mm x 1400 mm |
| 1.4.2.5 | SDK FTOf1700 – Oxygen frame 720 mm x 1700 mm |
| 1.4.2.6 | SDK FTOf2400 – Oxygen frame 720 mm x 1880 mm |
| 1.4.2.7 | SDK FTOf2400* – Oxygen frame 860 mm x 1000 mm / 900 mm x 860 mm |
| * Folded oxygen frame made of 2 segments. | |
| * Each oxygen frame can be equipped with an air diffuser on request. | |

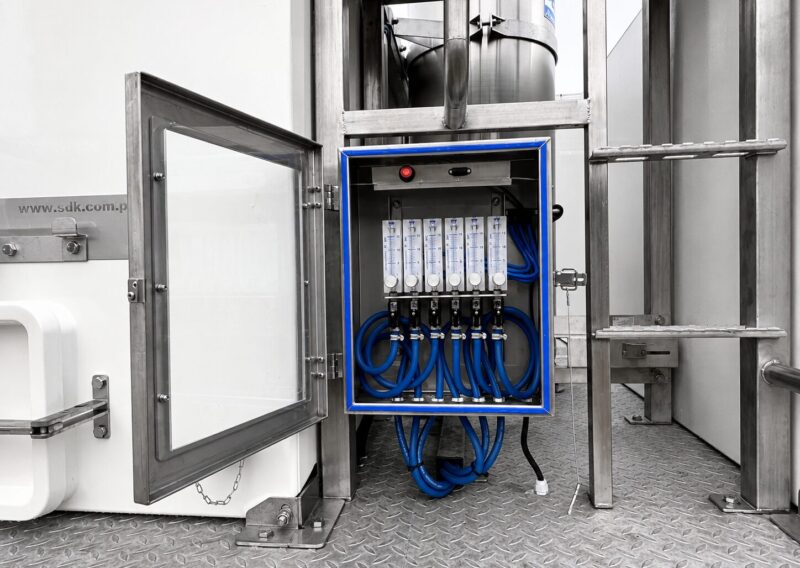

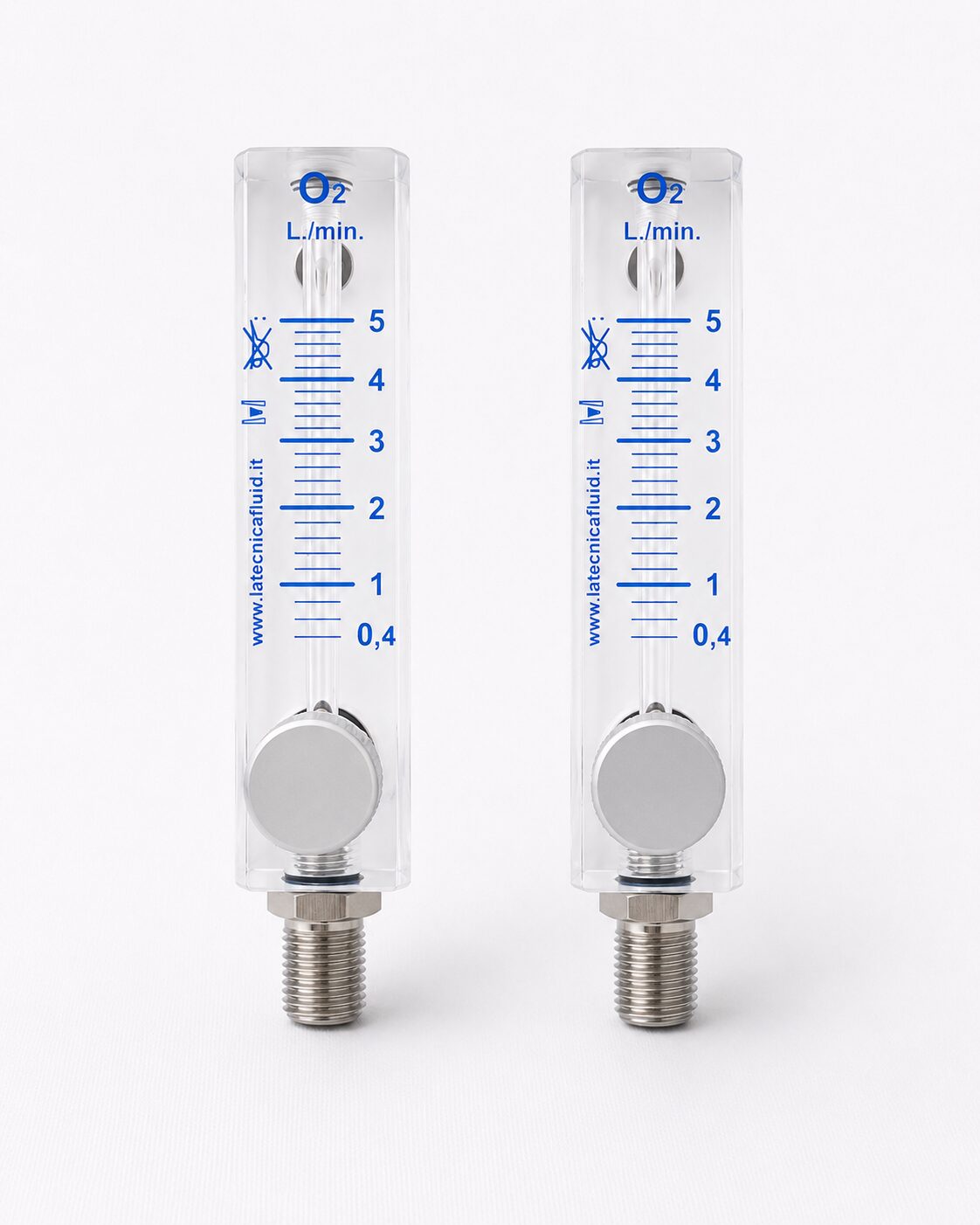

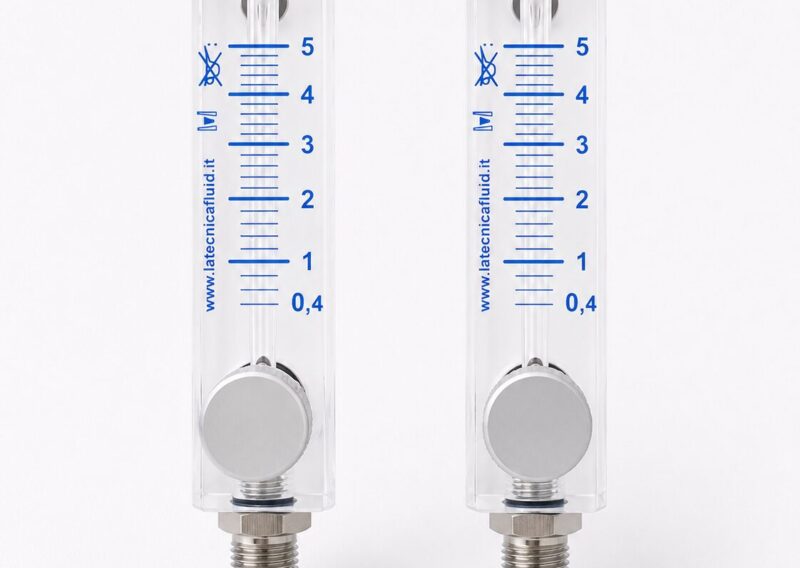

Oxygen Flow Regulators and Oxygen Installation Components

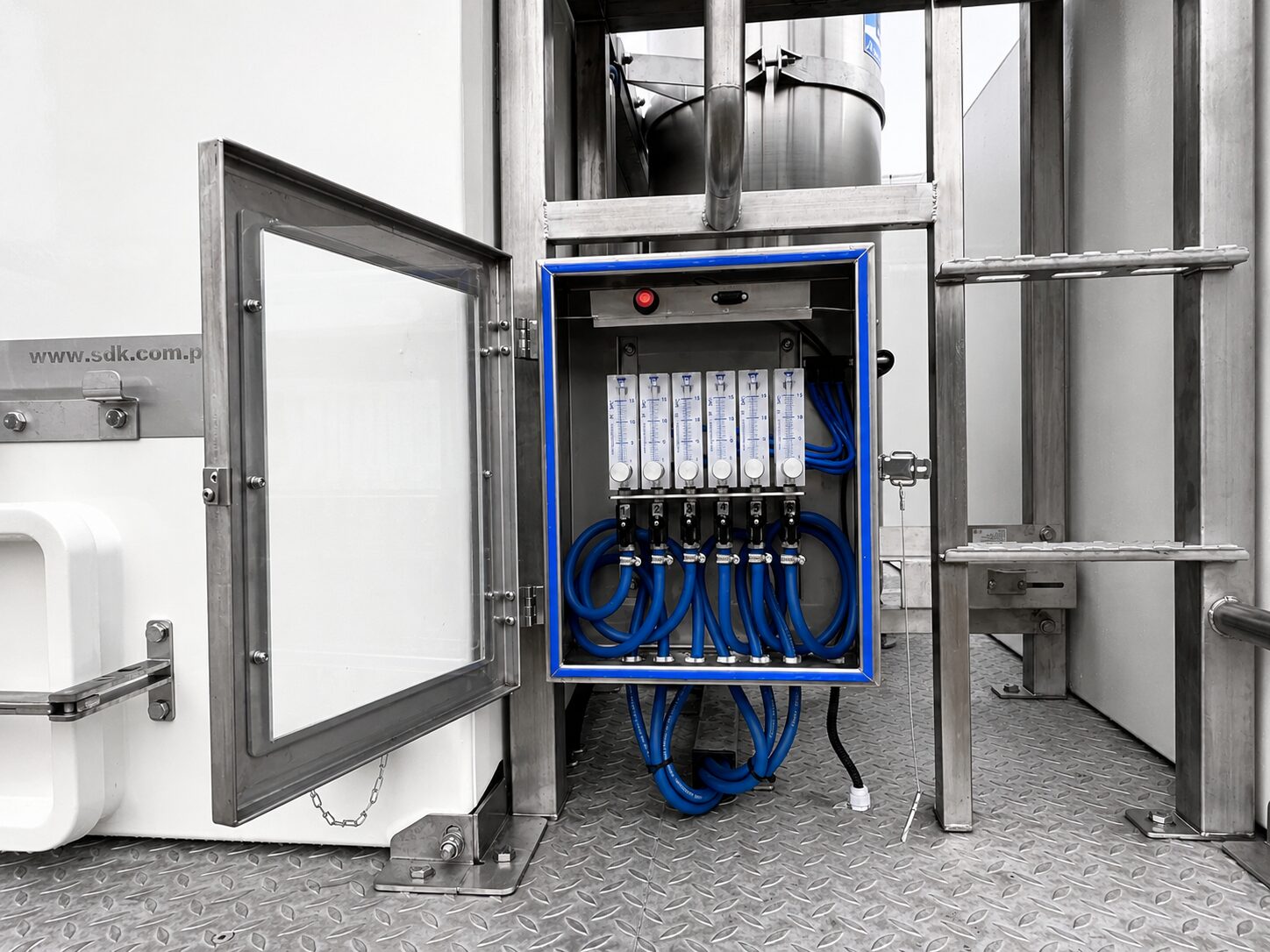

Equipment for adjusting basins also includes oxygen flow regulators, reducers and protection boxes for rotameters. These components make it easier to control the oxygen installation and protect its most important parts during everyday operation.
Regulators can be supplied as separate components or as complete sets with additional equipment. The selection depends on the number of tanks, the type of oxygen frames, the number of oxygen supply points and the customer’s requirements for system operation.
| Oxygen Flow Regulators | |
| Cat. nr | Symbol / Name |
| 1.4.3.1 | SDK FTOce – Oxygen flow regulator without extra equipment |
| 1.4.3.2 | SDK FTOce1 – Oxygen flow regulator with extra equipment |
| 1.4.3.3 | SDK FTOr1 – Oxygen reducer |

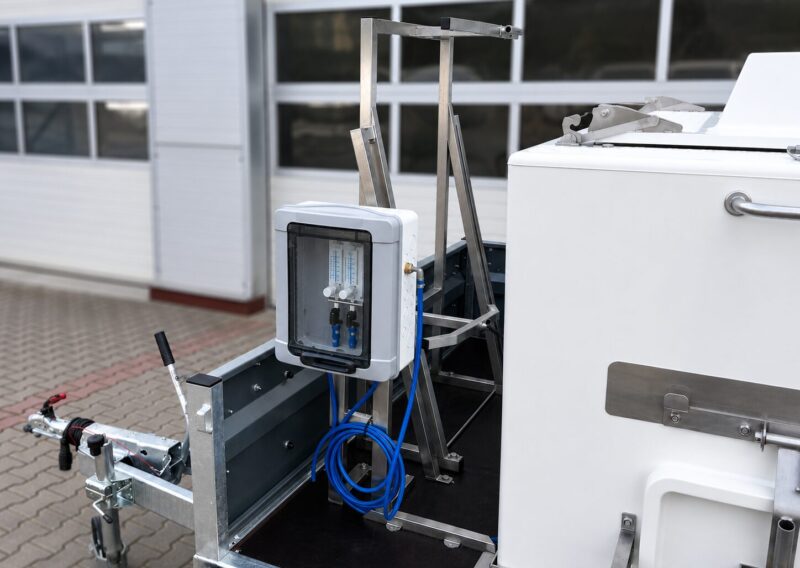

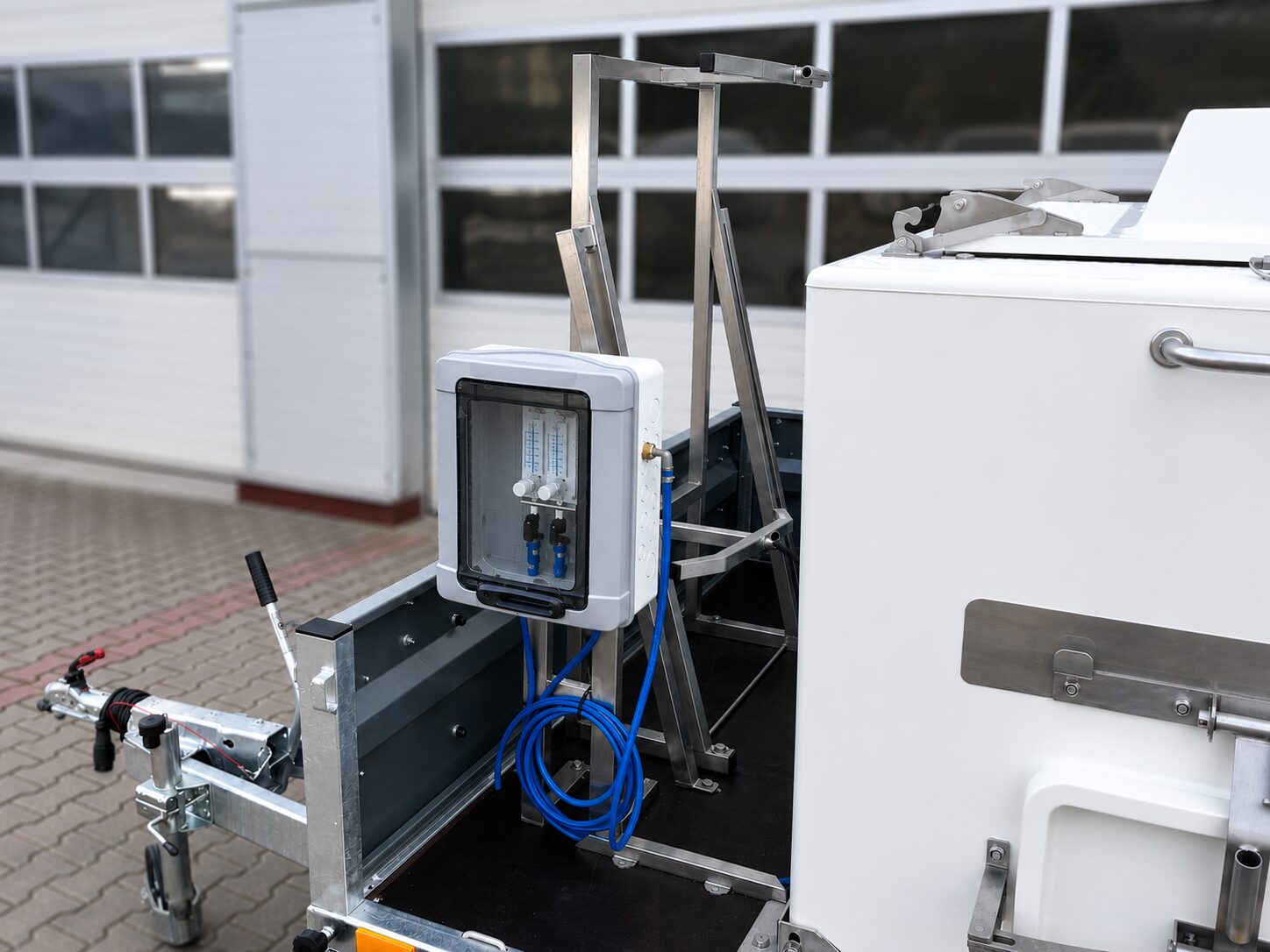

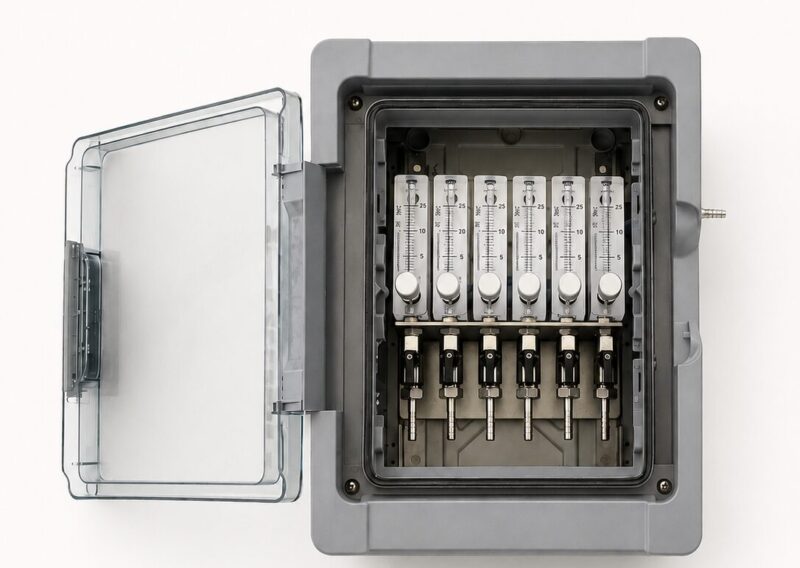

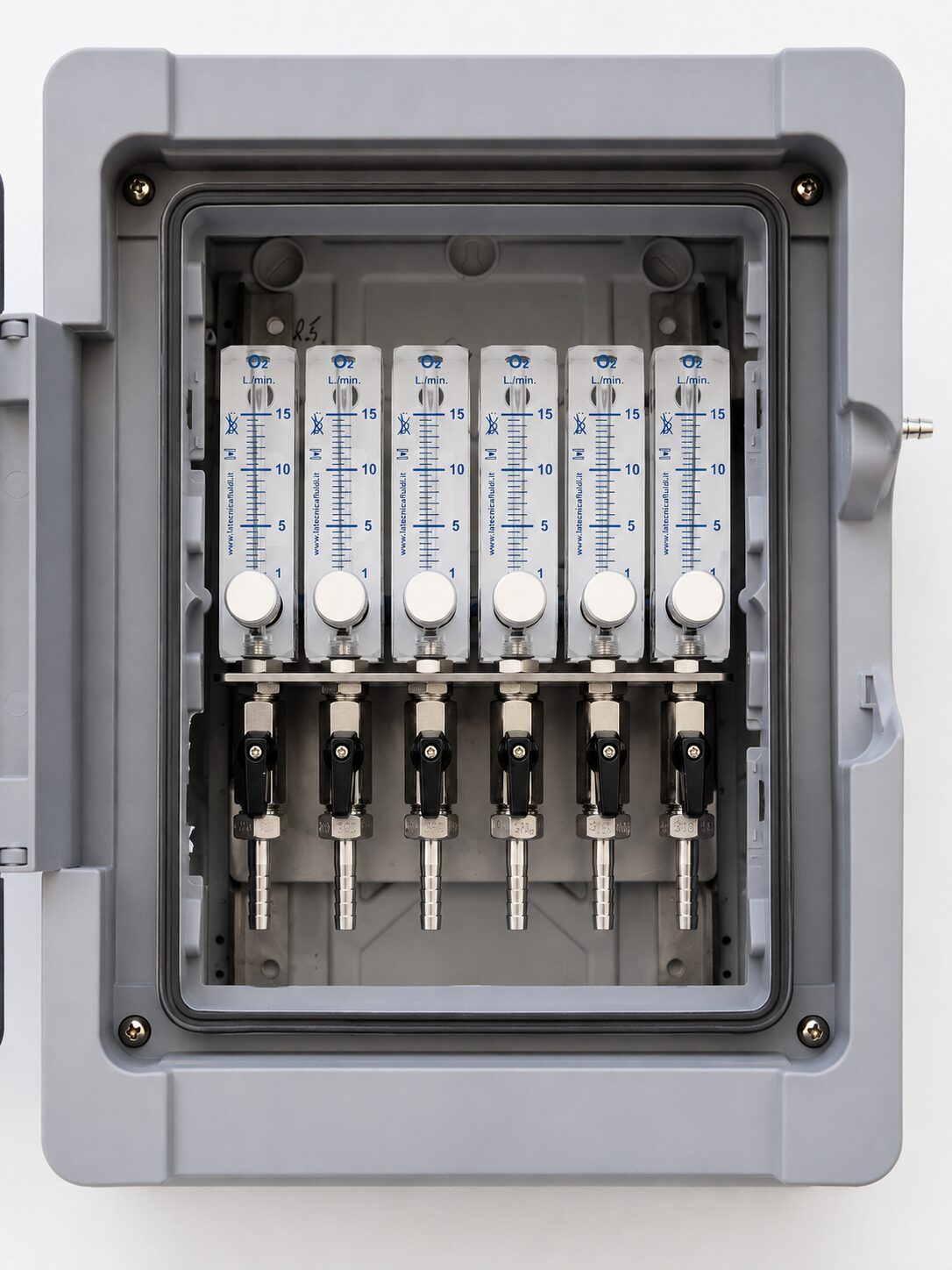

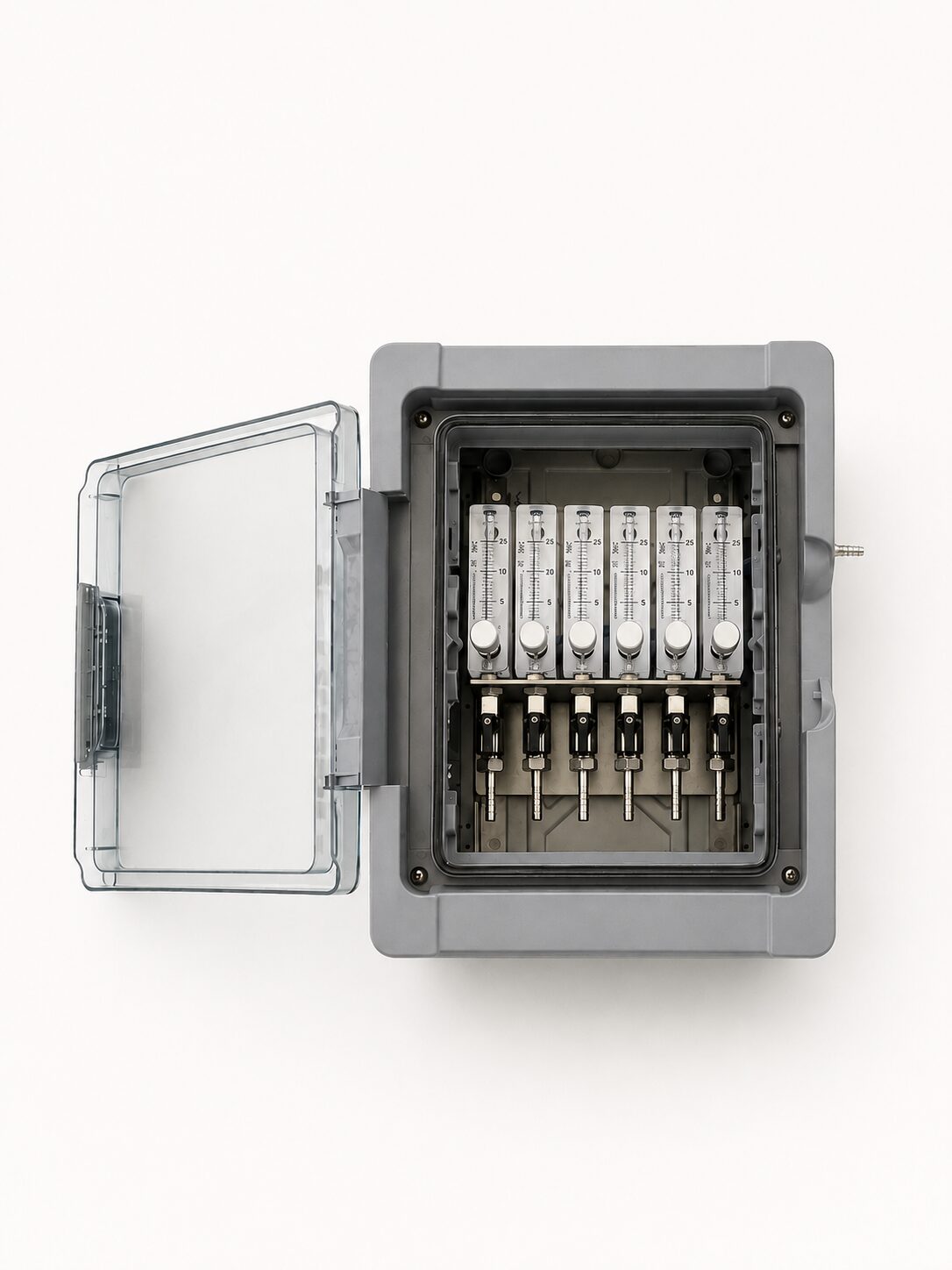

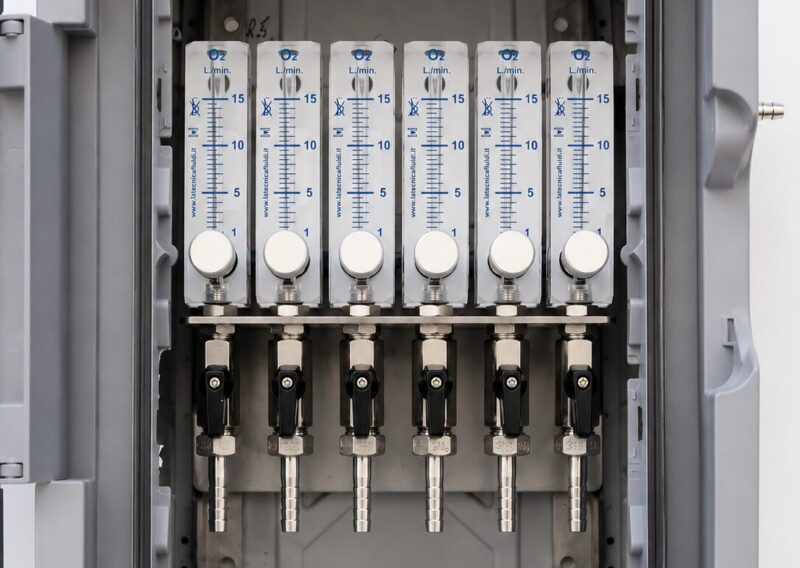

| 1.4.3.4 | SDK Ocbox – Protection box for oxygen flow regulator |

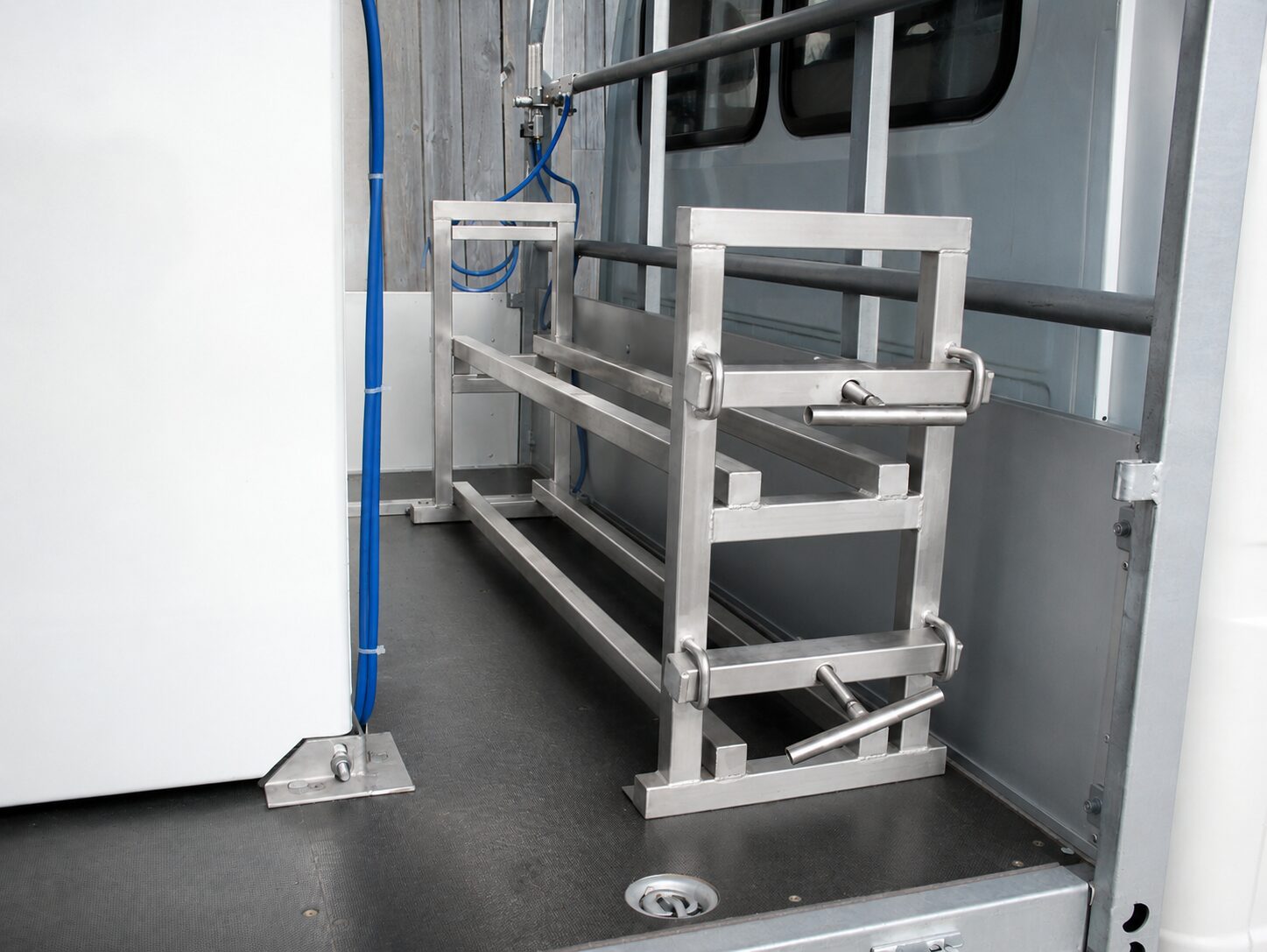

Fittings for Oxygen Bottles and Vehicle Fixing Systems
In live fish transportation, safe positioning of oxygen bottles and stable fixing of tanks on the vehicle platform are essential. That is why we offer fittings for one or two oxygen bottles, vertical stands, horizontal holders and elements attached to the vehicle side.
We also offer holders for fixing tanks to the vehicle platform. They allow a stable installation to be prepared for tanks of different capacities, both in smaller transport sets and in larger projects on trucks, trailers or semi-trailers.
| Fittings for Oxygen Bottles | |
| Cat. nr | Symbol / Name |

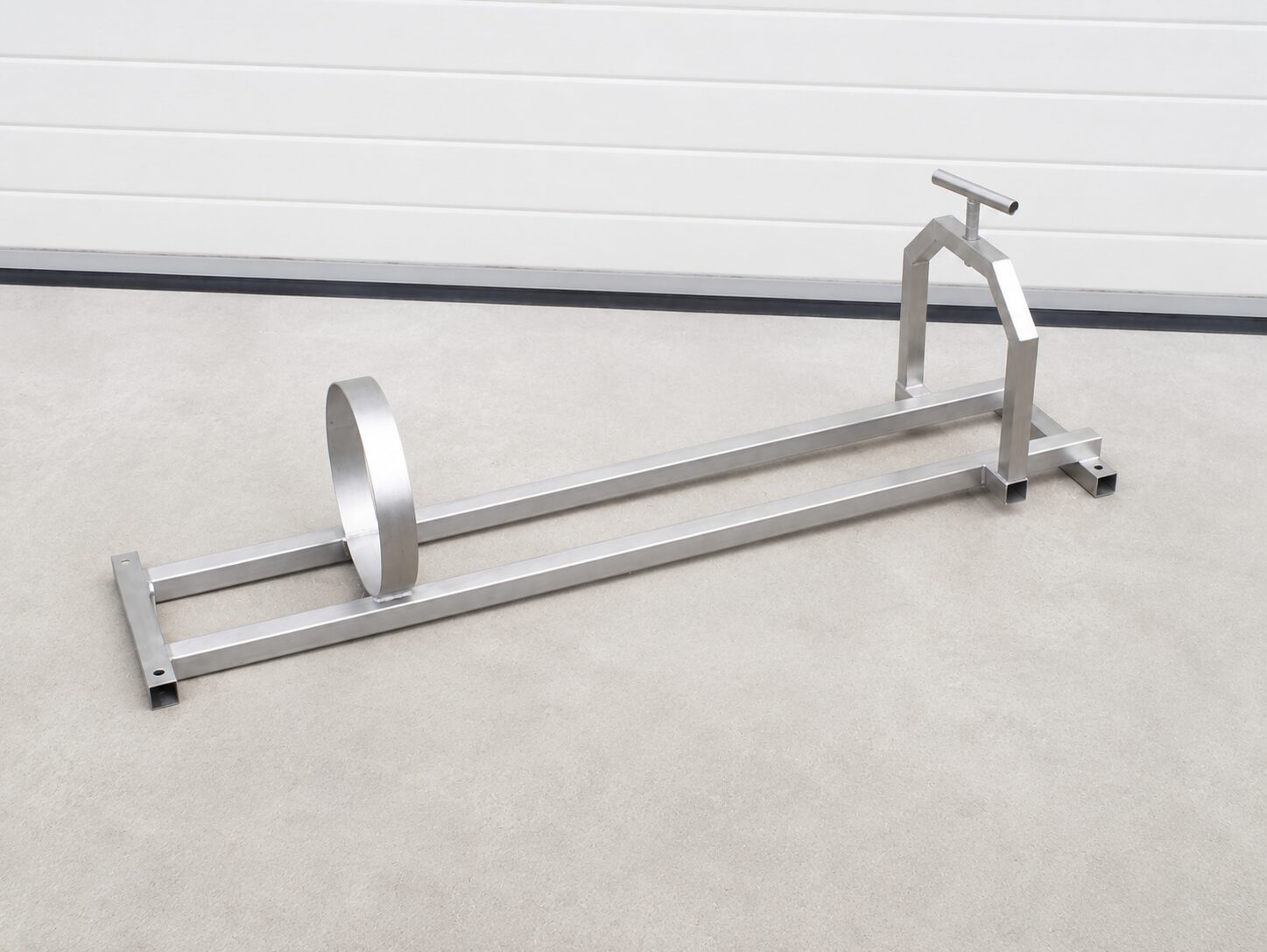

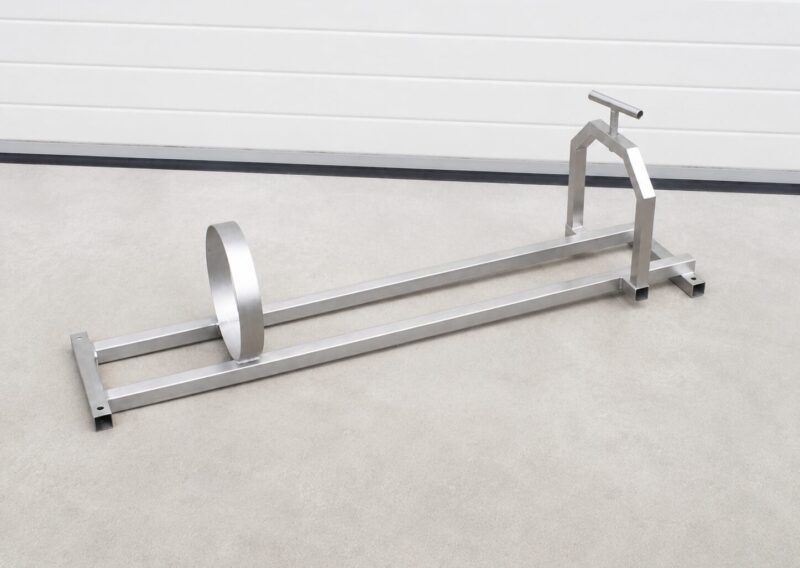

| 1.4.4.1 | SDK FOb1 – Fitting for 1 horizontal oxygen bottle |

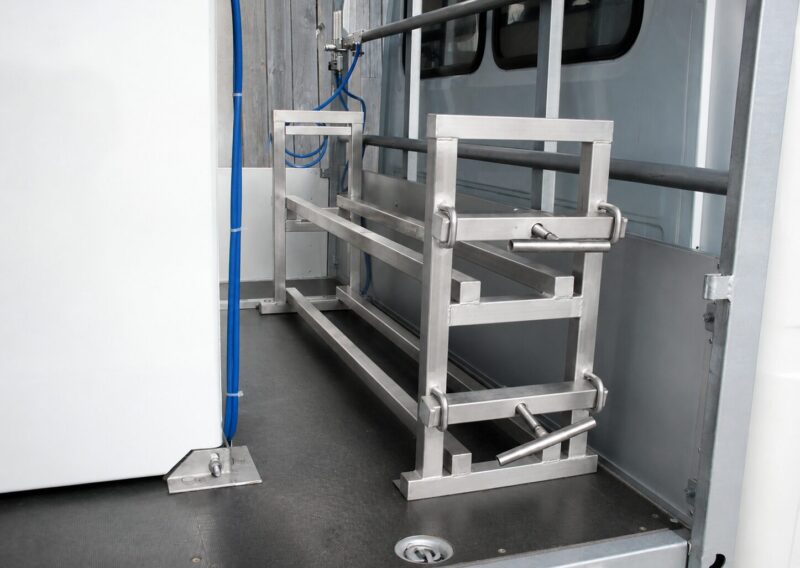

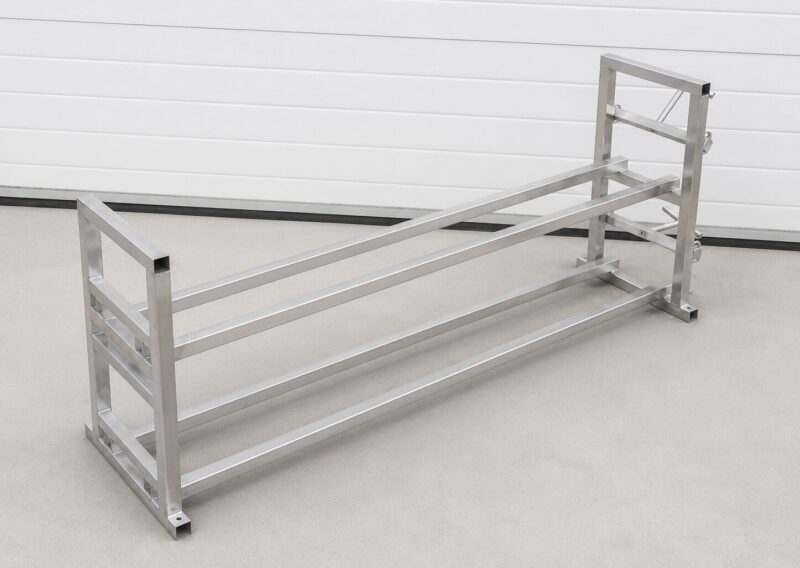

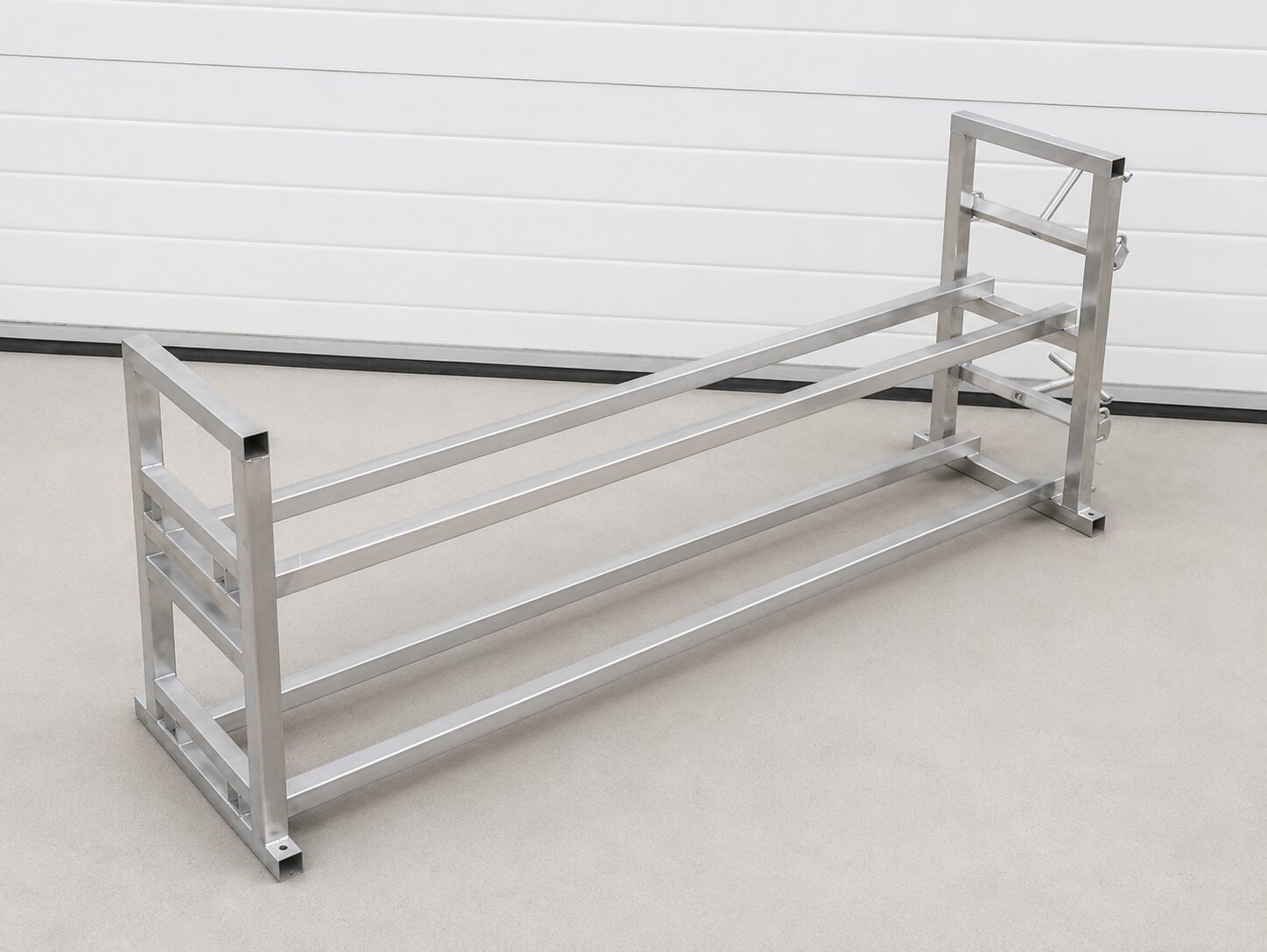

| 1.4.4.2 | SDK FOb2 – Fitting for 2 horizontal oxygen bottles |

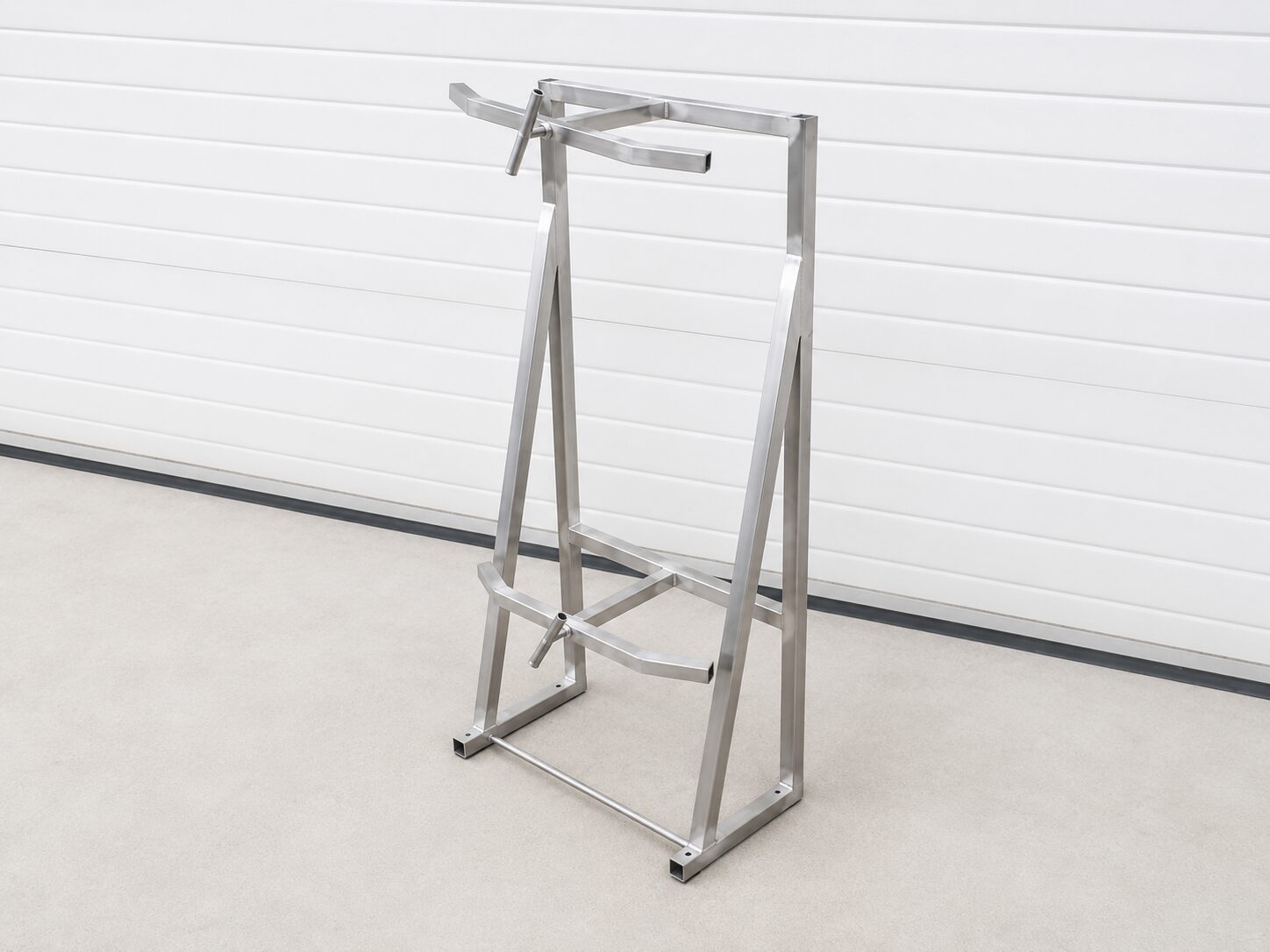

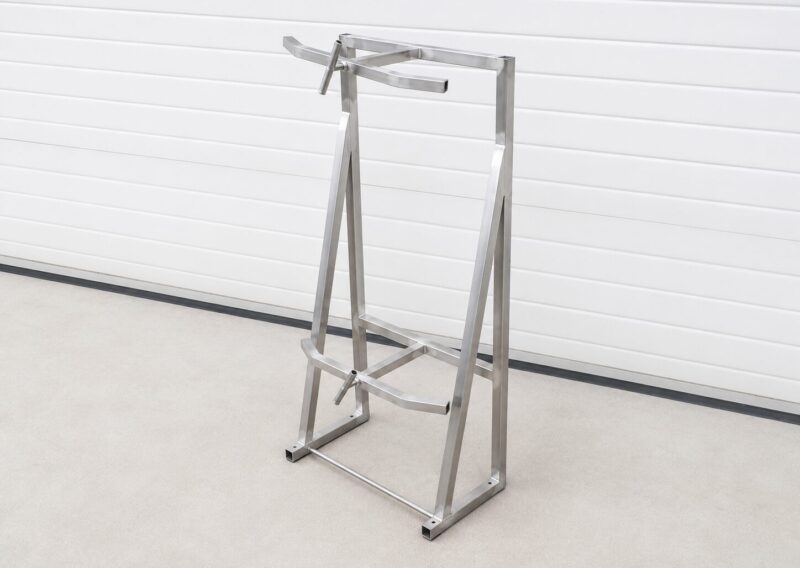

| 1.4.4.3 | SDK FOb3 – Fitting for 2 vertical oxygen bottles |
| 1.4.4.4 | SDK FOb4 – Fitting for 2 oxygen bottles attached to the vehicle side |

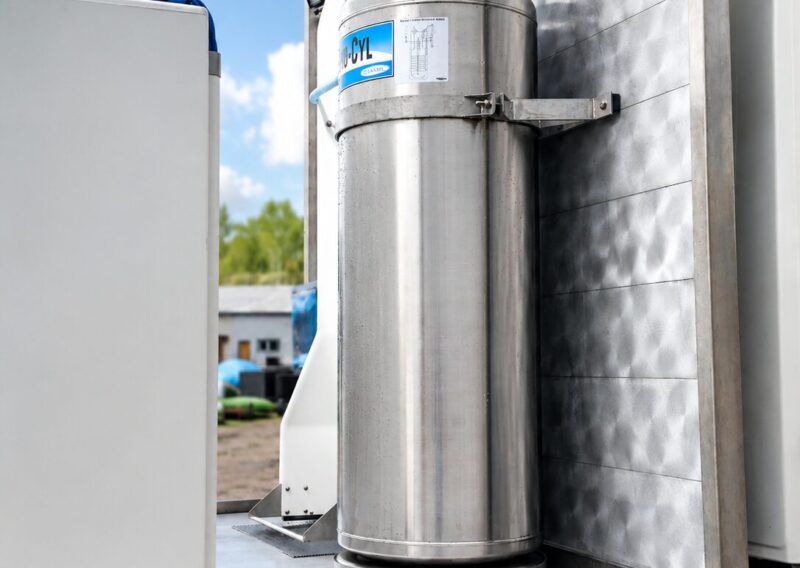

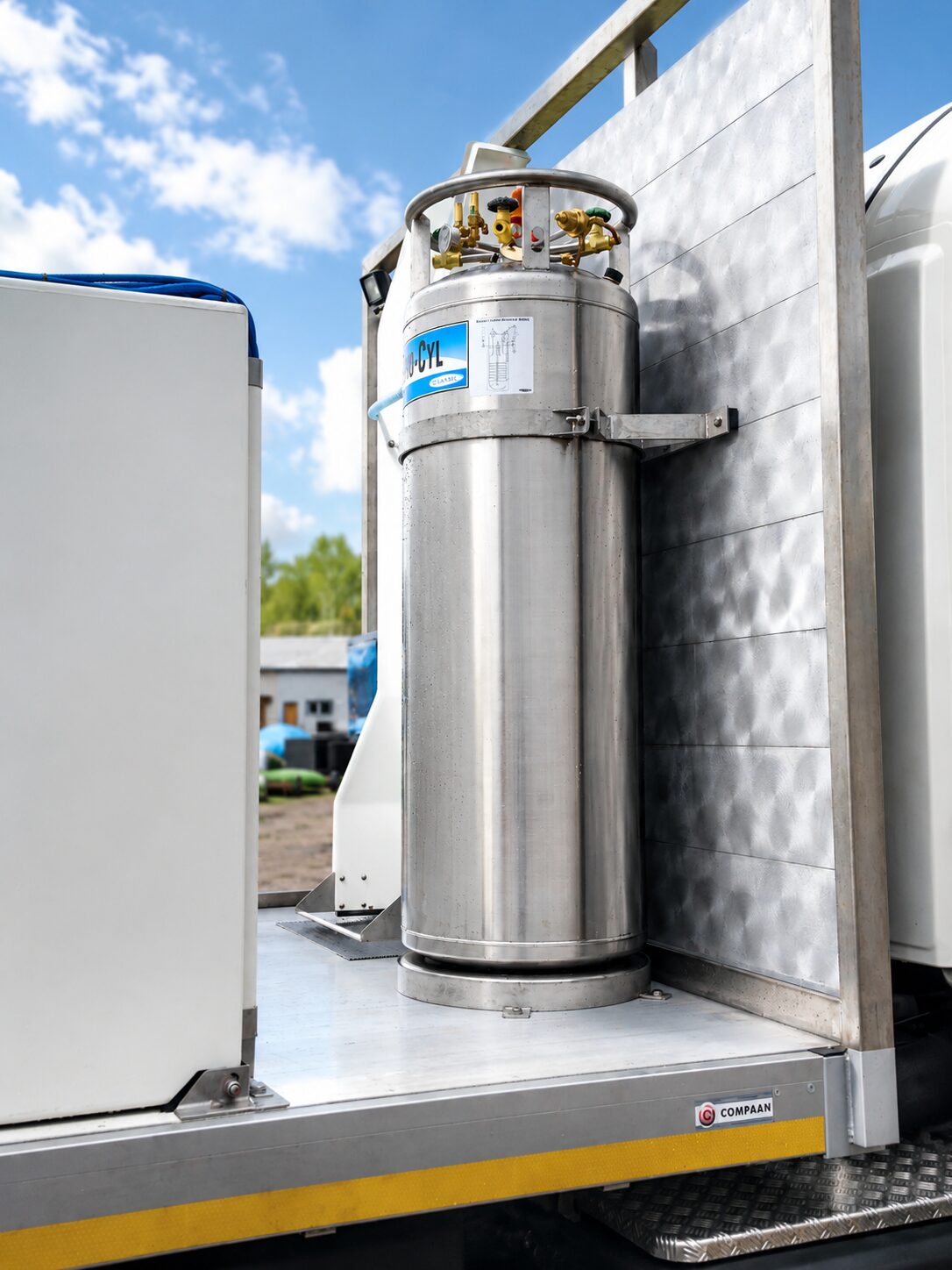

| 1.4.4.5 | SDK FOb5 – Fitting for Eurocyl 180 oxygen bottle |
Equipment Matched to a Complete Vehicle Installation
Equipment for adjusting basins is selected to work with the entire transport system: fish transport tanks, oxygen installation, water exchange system and fish unloading method. This gives the customer equipment adapted to real working conditions.

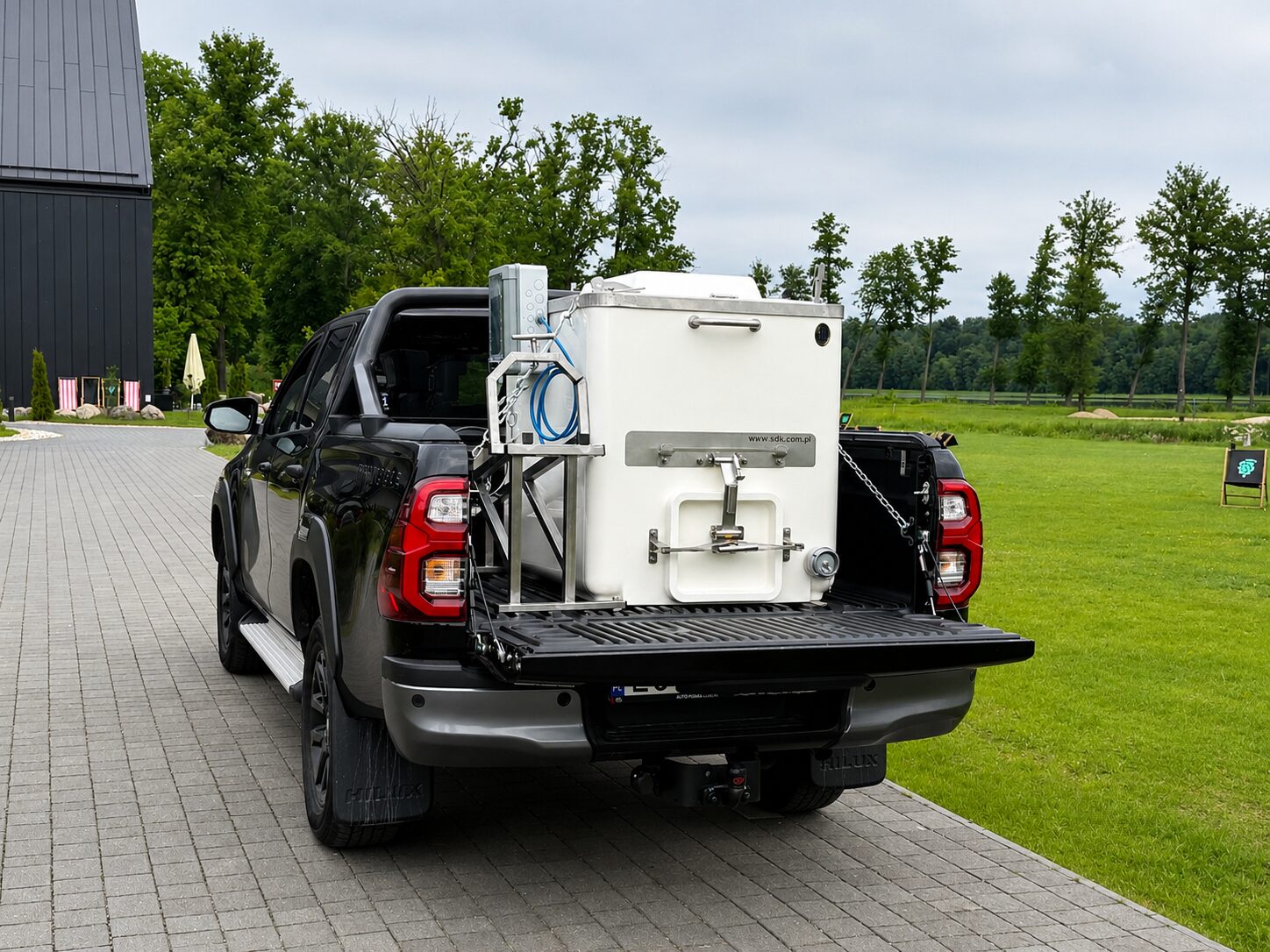

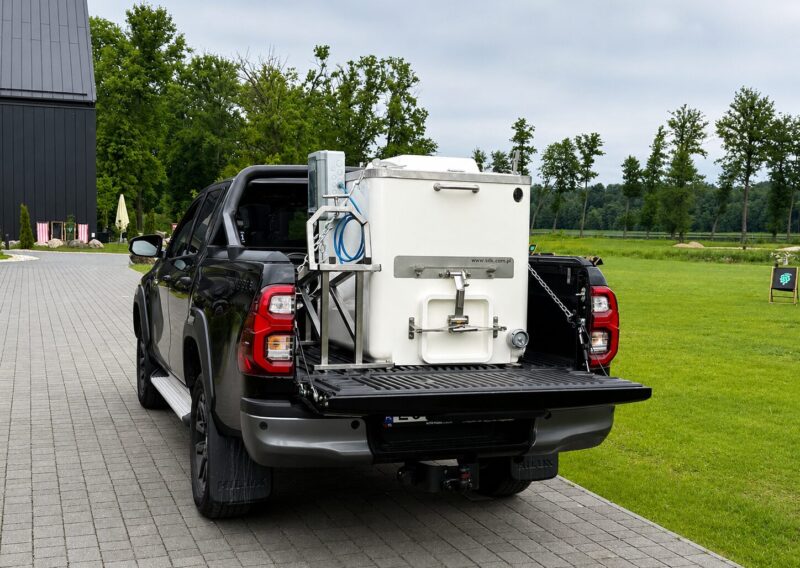

For larger projects, the equipment can be part of a complete service such as adjusting lorries for live fish transportation. The equipment can be used with isolated fish transporting tanks as well as with fish transporting tanks without isolation.
Related Solutions for Live Fish Transportation
Equipment for adjusting basins should be selected together with the whole live fish transport system. If you are planning a complete set, see also our vehicle installations for live fish transportation, which can include tank installation, oxygen system, water filling system and fish unloading solutions.
The equipment can be used with isolated fish transporting tanks and with fish transporting tanks without isolation. The selection depends on transport time, water temperature, tank capacity and vehicle type.
For oxygen frames, we can also select ceramic diffusers for pure oxygen supply, which help distribute oxygen effectively in the water during live fish transportation.
If you need equipment for a specific tank or are planning a complete vehicle installation, we can help select the right outlet chutes, oxygen frames, oxygen flow regulators, fixing systems and oxygen bottle holders.
You can also see the full SDK offer or contact us directly through the contact page if you need help selecting the right equipment for adjusting basins.
| Holders for Fixing Tanks to the Vehicle Platform | |
| Cat. nr | Symbol / Name |
| 1.4.5.1 | SDK FT Fft1 – Holders for fixing tanks to trailer 800-1300 |
| 1.4.5.2 | SDK FT Fft2 – Holders for fixing tanks to trailer 1700-3000 |
| Other Equipment | |
| Cat. nr | Symbol / Name |
| 1.4.7.1 | SDK FTIfw – Water filling installation |
| 1.4.7.2 | SDK FTgub – Rubber mat under tanks |
| 1.4.7.3 | SDK FTEuroCyl 180 – Liquid oxygen tank 186 l / 24 bar |
| 1.4.7.4 | SDK DR – Ladder for fish transport tanks |
| Additional Equipment for Fish Transporting Tanks | |
| Cat. nr | Symbol / Name |
| 1.4.6.1 | SDK FTBt – Baffle for fish transporting tank |
| 1.4.6.2 | SDK FTWall – Additional wall inside the fish transporting tank |
| 1.4.6.3 | SDK FTSC – Small cover for fish transporting tank 750 mm x 590 mm |
| 1.4.6.4 | SDK FTBC – Large cover for fish transporting tank 1100 mm x 740 mm |
| 1.4.6.5 | SDK FTss – Small sluice with fittings for fish transporting tank 325 mm x 290 mm |
| 1.4.6.6 | SDK FTbs – Large sluice with fittings for fish transporting tank 400 mm x 290 mm |
| 1.4.6.7 | SDK FTps – Thermal protection for sluice |
| 1.4.6.8 | SDK FTPc – Thermal protection for upper cover |
| 1.4.6.9 | SDK FTH – Handle for fish transporting tank |
| 1.4.6.10 | SDK FTVg – Vertical grid for outlet valve |
| 1.4.6.11 | SDK FTRg – Round grid for outlet valve |
| 1.4.6.12 | SDK FTOg – Rectangular grid for outlet valve |
| 1.4.6.13 | SDK FTOv – Outlet valve 2″ |
| 1.4.6.14 | SDK FTBbc – Cover blockade for fish transporting tanks |
| 1.4.6.15 | SDK FTCbc – Cover closing system for fish transporting tanks |
